Guard Mode：1：1 / 1+1
Test Wavelength：1310 / 1550nm; 850nm
Fiber Type：SM（9/125um）MM（62.5/125um）
Connector：LC / PC
Communication Port：RS-232, RJ45

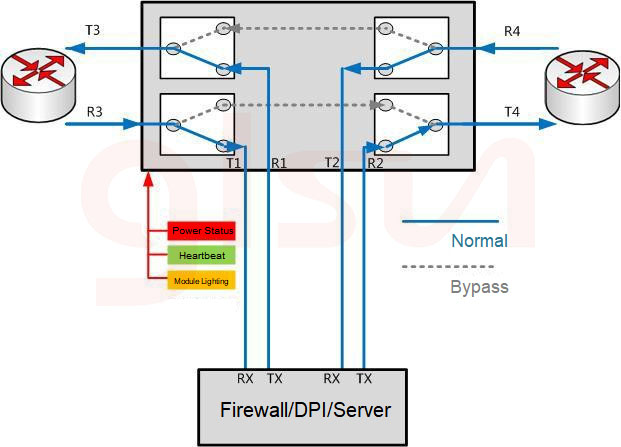

BPS1000 optical bypass protection system integrates optical switching modules, optical monitoring modules and heart rate monitoring, which provides bypass protection when optical network node equipments appear power interruption, hardware failure, software deadlock etc to insure the normal signal transmission. Mainly used in flow control equipment, signal safety analysis, gigabit data communications and other fields.
Features
· Transparent Transmission Signal, High Stability, High Reliability.
· Diversification Heartbeat, Support Independent Control or Group Control.
· Low Insertion Loss.
· Support Gigabit Networks.
· Customization of Product Functions and Appearance is Available.
· Support Four Ways
· Support TCP Protocol Command Management, Support WEB Management
Applications
|
Parameter |
Unit |
SUN-BPS1000 |
||||
|
Guard Mode |
|
SM 1:1 |
SM 1+1 |
MM 1:1 |
MM 1+1 |
|
|
Test Wavelength |
nm |
1310 / 1550 |
850 |
|||
|
Insertion Loss |
R1 – T3 |
dB |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
|
R2 – T4 |
dB |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
|
|
R3 – T1 |
dB |
≤ 1.5 |
≤ 3.8（5：5） ≤ 6.2（3：7） ≤ 8.0（2：8） |
≤ 1.5 |
≤ 4.0（5：5） ≤ 6.4（3：7） ≤ 8.2（2：8） |
|
|
R4 – T2 |
dB |
≤ 1.5 |
≤ 3.8（5：5） ≤ 6.2（3：7） ≤ 8.0（2：8） |
≤ 1.5 |
≤ 4.0（5：5） ≤ 6.4（3：7） ≤ 8.2（2：8） |
|
|
R3 – T4 |
dB |
≤ 1.5 |
≤ 5.0（5：5） ≤ 3.5（3：7） ≤ 2.8（2：8） |
≤ 1.5 |
≤ 5.2（5：5） ≤ 3.7（3：7） ≤ 3.0（2：8） |
|
|
R4 – T3 |
dB |
≤ 1.5 |
≤ 5.0（5：5） ≤ 3.5（3：7） ≤ 2.8（2：8） |
≤ 1.5 |
≤ 5.2（5：5） ≤ 3.7（3：7） ≤ 3.0（2：8） |
|
|
Return Loss |
dB |
≥ 45 |
≥ 30 |
|||
|
Crosstalk |
dB |
≥ 55 |
≥ 35 |
|||
|
WDL |
dB |
≤ 0.3 |
≤ 0.3 |
|||
|
PDL |
dB |
≤ 0.2 |
|
|||
|
Switching Time |
ms |
＜ 10 |
＜ 10 |
|||
|
Monitoring Optical Power Range |
dBm |
-50 ~ +23 |
||||
|
Monitoring Optical Power Accuracy |
dB |
± 0.5 |
||||
|
Monitoring Optical Power Resolution |
dB |
± 0.01 |
||||
|
Fiber Type |
|
SM（9/125um） |
M5（50/125um） M6（62.5/125um）
|
|||
|
Communication Port |
|
RS-232 、RJ45 |
||||
|
Power Supply |
V |
AC: 85 ～ 264（50/60Hz） or DC: 36 ～ 72 |
||||
|
Power Consumption |
W |
＜ 5 |
||||
|
Chassis Type |
|
1U standard 19”rack（482.6×220×44mm） |
||||
|
Operating Temperature |
℃ |
-5 ~ +55 |
||||
|
Storage Temperature |
℃ |
-20 ~ +70 |
||||
|
Relative Humidity |
|
5% ~ 95% (non-condensing) |
||||
1+1 Splitting Ratio Explanation：
The split ratio (5:5) indicates 50% optical power allocation to the main path and 50% to the tap path;
The split ratio (3:7) indicates 30% optical power allocation to the main path and 70% to the tap path;
The split ratio (2:8) indicates 20% optical power allocation to the main path and 80% to the tap path.
1:1 serial mode
1+1 parallel mode
SUN-BPS1000-N-A-B-C-D-E-F-G
|
N |
A |
B |
C |
D |
E |
|
Link Number |
Guard Mode |
Mirroring Mode |
Fiber Type |
Optical Monitoring |
Connector Type |
|
L1: support 1 line protection L2: support 2 line protection L4: support 4 line protection X: other |
1:1: 1:1 serial mode 1+1(xx:yy): 1+1 parallel mode( xx:yy means splitting ratio) X: other |
Empty: without mirroring M50: 50% mirroring splitting M40: 40%mirroring splitting M30: 30% mirroring splitting X: other |
SM: 9/125 singlemode, 1310/1550nm M6: 62.5/125 multi-mode, 850nm X: other |
PD0: no optical monitoring PD1:R1 or R2 optical monitoring PD2: R1 R2 optical monitoring PD4: R1-R4 optical monitoring X: other |
LP: LC/PC LA: LC/APC X: other |
|
F |
G |
|
|
|
|
|
Test wavelength |
Power supply mode |
|
|
|
|
|
850: 850nm 1310: 1310nm 1550: 1550nm 13/15: 1310/1550nm X: other
|
AC: 85-264V DC: 36-72V AC/DC:220V&48V AC/AC: Double AC DC/DC: Double DC |
|
|
|
