Channel No.：16 to 2（D1×8）; 32 to 2（D1×16）
Fiber Type：SM（9/125um）
Connector：LC / PC
Chassis Type：1U, 2U or Customized

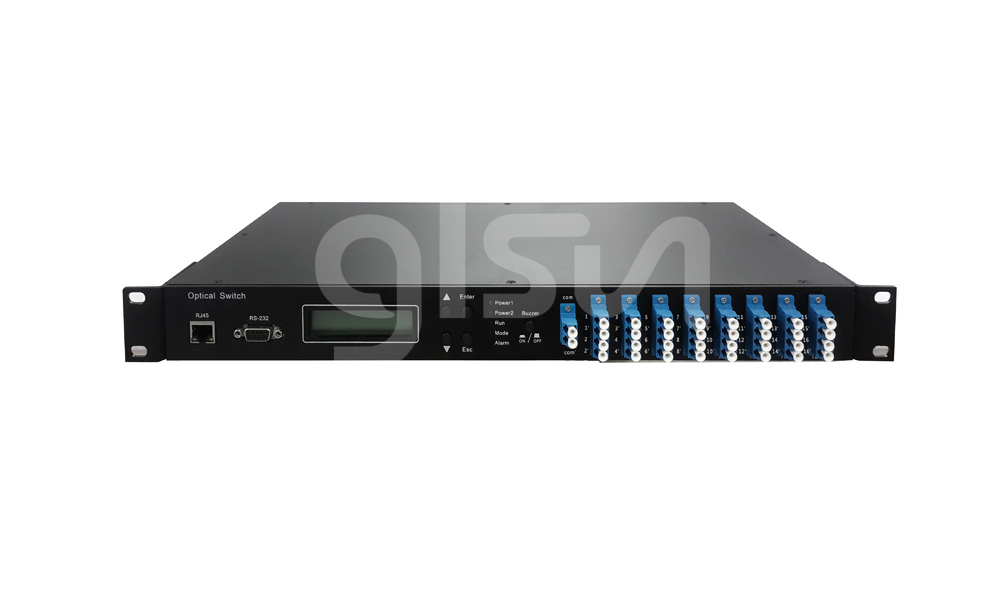

GLSUN Multi-channel Optical Link Selector is mainly used in multi-channel optical monitoring of optical transmission system, LAN multi-source/detector auto-exchange, optical sensing multi-point dynamic monitoring system, cable test of optical fiber, optical devices, networks and field projects in optical test system, optical device debugging and installation, monitoring multi-link network data security in data security,etc
·Low insertion loss, fast switching
·Hot backup of double power supply, support hot-plugging.
·LED display panel. Visual display, convenient operation.
·Transparent transmission signal.
·High stability and reliability.
·Channel and time interval of automatic scanning can be set up.
·Support WEB, SNMP, TELNET, SSH, FTP log download,etc.
|
Parameters |
Unit |
Indicators |
|
|
Channel No. |
|
16 to 2（ D1×8 ） |
32 to 2（ D1×16 ） |
|
Test Wavelength |
nm |
1310 / 1550 |
|
|
Insertion Loss |
dB |
Typ: < 0.6dB， Max: < 1.0 dB |
|
|
Repeatability |
dB |
≤ ±0.02 |
|
|
Return Loss |
dB |
≥ 45 |
|
|
Crosstalk |
dB |
≥ 70 |
|
|
WDL |
dB |
≤ 0.25 |
|
|
PDL |
dB |
≤ 0.1 |
|
|
Switching Time |
ms |
< 10 ms (Sequence switch time of adjacent channel） |
|
|
Fiber Type |
|
SM（ 9/125um ） |
|
|
Connector |
|
LC / PC |
|
|
Monitoring Port |
|
RJ45、RS-232 |
|
|
Working Power Supply （ Plug-type ） |
V |
AC:100 ～ 240（ 50/60Hz ）or DC: 36 ～ 72 |
|
|
Power Consumption |
W |
＜ 10 |
|
|
Operating Temperature |
℃ |
-5 ～ 55 |
|
|
Storage Temperature |
℃ |
-40 ～ 85 |
|
|
Chassis Type |
|
1U standard 19 "rack（ 482.6×250×44mm ） 2U standard 19 "rack（ 482.6×303×89mm ） |
|
|
Note：Customization is available. |
|||
OSW-N-A-B-C-D-E
|
N |
A |
B |
C |
D |
E |
|
Channel No. |
Fiber Type |
Operating Wavelength |
Power Supply Mode |
Connector |
Chassis Size |
|
D1×8: 16 to 2 D1×16: 32 to 2 X:Others |
SM:9/125, Single mode M6:62.5/125, multimode X: Others |
13/15: 1310/1550nm 850: 850nm X: Others |
AC: 100~240V DC: 36~72V AC/DC: 100~240V&36~7 2V AC/AC: dual 100~240V DC/DC:dual 36~72V X: Others |
LP: LC/PC X: Others |
1U: 482.6×250×44mm 2U: 482.6×303×89mm X: Others |
