WDM Wavelength Division Multiplexer
  • WDM Wavelength Division Multiplexer
  • DWDM Wavelength Division Multiplexing System

WDM Wavelength Division Multiplexer

Wavelength Range:1260 ~ 1620nm, 1500 ~ 1620nm

Storage Temperature:-20 ~ +70℃

Relative Humidity:5% ~ 95%

Dimension:160×200×21mm(WxDxH)

Product Details

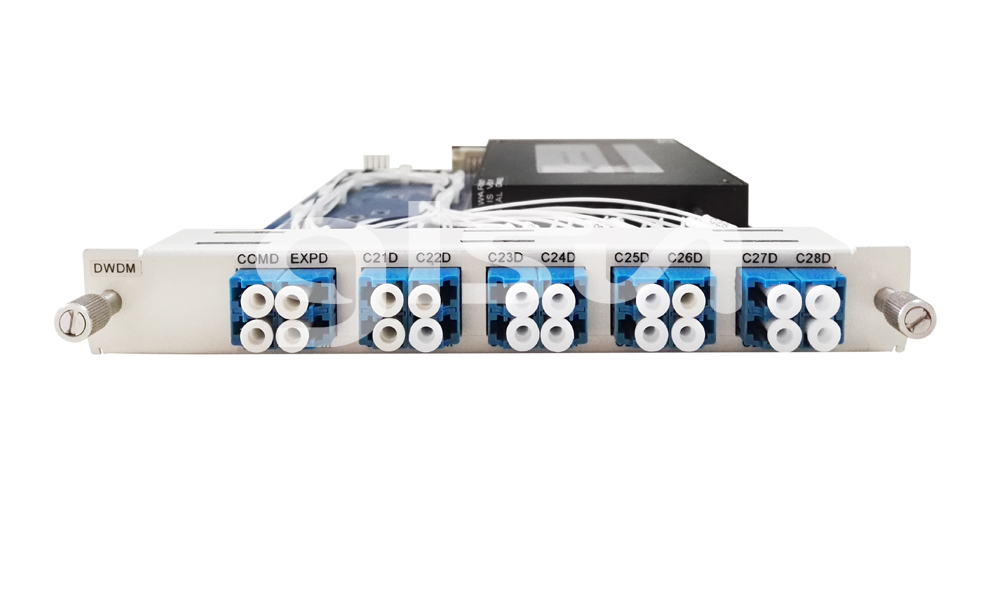

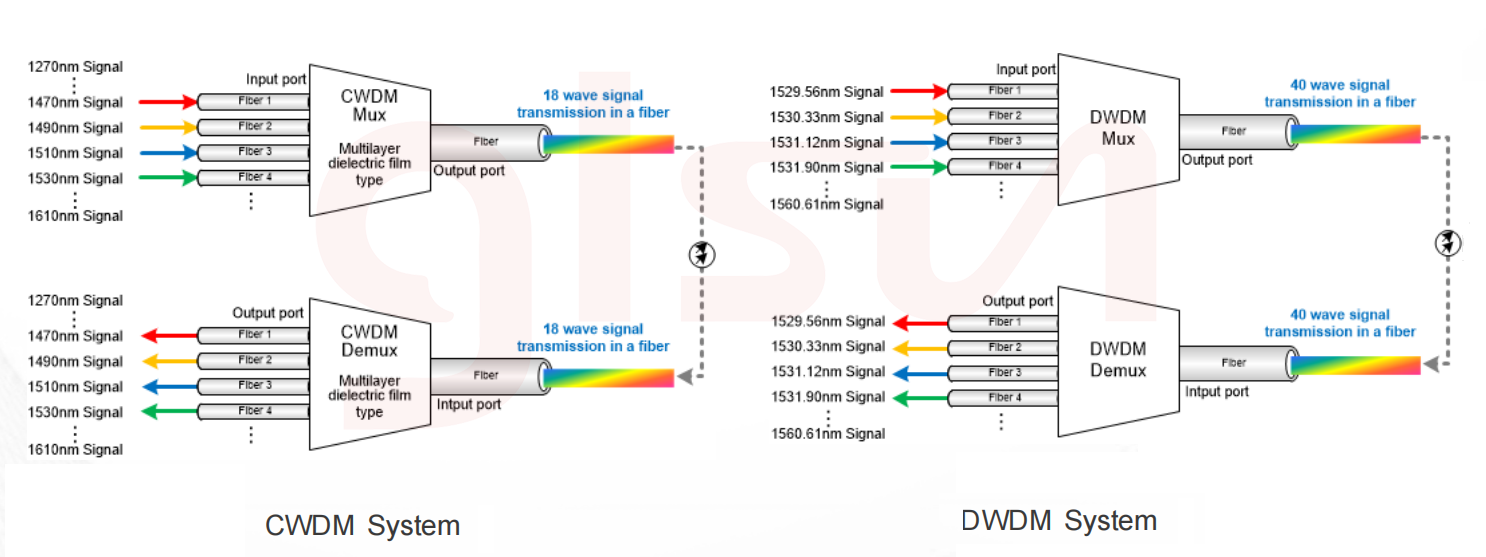

OTS3000-WDM Wavelength Division Multiplexer

OTS3000-WDM is a kind of function card in optical communication integrated platform. It can effectively save the optical fiber resource and networking cost. Wavelength Division Multiplexer (CWDM/DWDM) is the solution of optical fiber resource shortage and multi-service transparent transmission for MAN convergence and access layer to enable the network to be constructed and operated in short time. Since its low cost, low power consumption and compact size features, CWDM becomes an ideal transmission solution of low price and high performance choice.


·Modularized design, Compact size, Support hot Plug.
·Low insertion loss, Low PDL, High Channel Isolation.
·High stability, High reliability.


·WDM System
·MAN (Metropolitan Area Network)



Specifications

Parameters

Unit

OTS3000-CWDM

OTS3000-DWDM

Dimension

mm

160×200×21(WxDxH)

Maximal Power Consumption

W

0.5

Wavelength Range

nm

1260 ~ 1620

1500 ~ 1620

Channel Spacing

Ghz



100

200

Passband Width

nm

±7.5

±0.11

±0.25

Passband Flatness

dB

≤ 0.5

Channel

λ

4

8

16

4

8

16

Insertion Loss

dB

≤ 1.5

≤ 2.7

≤ 5.0

≤ 2.0

≤ 3.0

≤ 5.0

Isolation

dB

Adjacent channel isolation ≥30    Non-adjacent channel isolation≥45

Return Loss

dB

SM ≥ 45

Directivity

dB

SM ≥ 50

PDL

dB

≤ 0.1

≤ 0.15

≤ 0.20

Polarization Mode Dispersion

ps

≤ 0.1

≤ 0.15

Optical Power

mw

≤ 500

Operating Temperature

-5 ~ +55

Storage Temperature

-20 ~ +70

Relative Humidity



5% ~ 95% (non-condensing)

Ordering Information: OTS3000-CWDM-A-B-C-D

A: Channel Type

B: Multiplex Type

C: The Starting Wavelength

D:Connector Type

4:4 Channels

8:8 Channels

16: 16 Channels

4+1:4 Channels with upgrade port

8+1:8 Channels with upgrade port

16+1:16Channels with upgrade port

X: Others

M: MUX

D: DEMUX

M/D: MUX/DEMUX

X:   Others

27: 1270 nm

29: 1290 nm

59: 1590 nm

61: 1610 nm

Refer to ITU CWDM

wavelength table

LP: LC/PC

X: Others

Ordering Information: OTS3000-DWDM-A-B-C-D

A: Channel Type

B: Multiplex Type

C: The Starting Wavelength

D: Connector Type

44 Channels

8:8 Channels

16:16 Channels

4+1:4 Channels with upgrade port

8+1:8 Channels with upgrade port

16+1:16Channels with upgrade port

X: Others

M: MUX

D: DEMUX

M/D: MUX/DEMUX

X: Others

C20C20 1561.42

C21C21 1560.61

Refer to ITU CWDM

wavelength table

LP: LC/PC

X: Others
