Connector Type：LC/PC
Storage Temperature：-20 ~ +70℃
Relative Humidity：5% ~ 95%
Dimension：160×200×43mm（WxDxH）

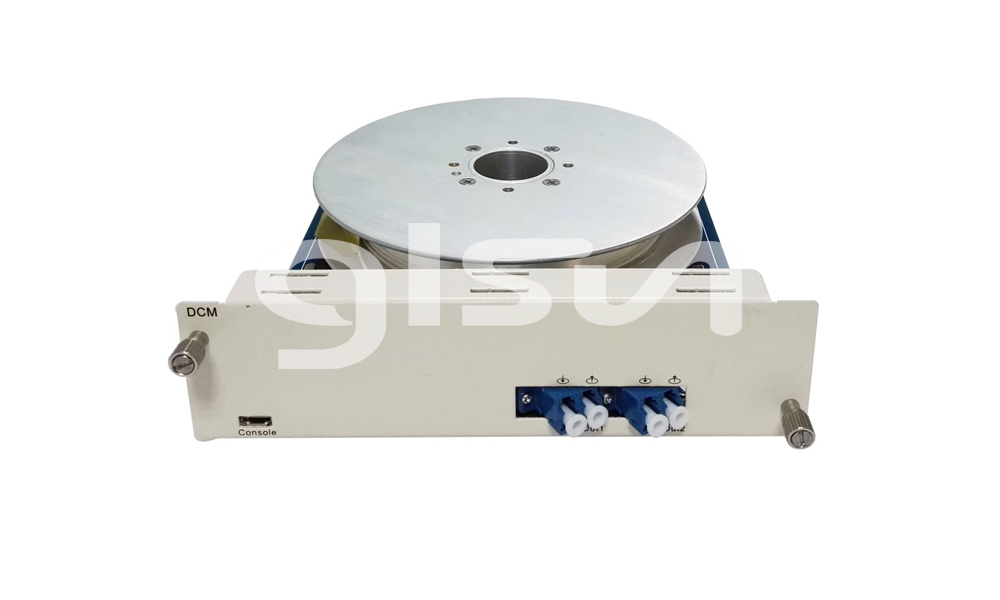

OTS3000-DCM Dispersion Compensation Module
GLSUN OTS3000-DCM Dispersion Compensation Module is mainly used for the optical signal long-haul transmission and to compensate the G652 single mode optical fiber dispersion in the long-haul DWDM communication system. DCM module can work with other function cards (such as DWDM, OADM, EDFA and OTU）together to construct the complete optical network transmission system.
·Modularized design, Compact size, Support hot Plug.
·Wide wavelength range dispersion compensation and very low remaining dispersion in DWDM system.
·Low insertion loss, low polarization mode dispersion.
·All parameters pass the Telcordia GR-2854-CORE certification.
·The reliability pass the Telcordia GR-1221-CORE certification.
·G.652optical fiber long-haul communication system.
·DWDM transmission system, SDH system.
·Dispersion adjustment.
|
Parameters |
Unit |
OTS3000-DCM |
|||
|
Dimension |
mm |
160×200×43（WxDxH） |
|||
|
Maximal Power Consumption |
W |
0.5 |
|||
|
Brillouin Dispersion Domain Value |
dBm |
≥ 6 |
|||
|
Nonlinear Coefficient |
W-1 |
≤ 1.4*10^9 |
|||
|
Effective Area |
um2 |
≥ 20 |
|||
|
Dispersion Compensation Value |
km |
20 |
30 |
40 |
50 |
|
Ps/nm |
-340±20 |
-500±20 |
-670±20 |
-840±20 |
|
|
Relative Dispersion Slope |
nm-1 |
0.0036±20% |
|||
|
Insertion Loss |
dB |
≤ 3 |
≤ 4.2 |
≤ 4.7 |
≤ 5.6 |
|
Polarization Mode Dispersion |
ps |
≤ 0.7 |
≤ 0.7 |
≤ 0.8 |
≤ 0.9 |
|
Connector Type |
|
LC/PC |
|||
|
Operating Temperature |
℃ |
-5 ~ +55 |
|||
|
Storage Temperature |
℃ |
-20 ~ +70 |
|||
|
Relative Humidity |
|
5% ~ 95% (non-condensing) |
|||
|
A：Dispersion Compensation Distance |
B：Connector Type |
|
20：20km compensation 30：30km compensation 40：40km compensation 50：50km compensation X: Others |
LP: LC/PC X: Others |
