AWG Array Waveguide Grating System
  • AWG Array Waveguide Grating System

AWG Array Waveguide Grating System

Wavelength Range:1529.55 ~ 1560.60nm

Channel Spacing:100Ghz

Storage Temperature:-20 ~ +70℃

Relative Humidity:5% ~ 95%

Dimension:160×200×43mm(WxDxH)

Product Details

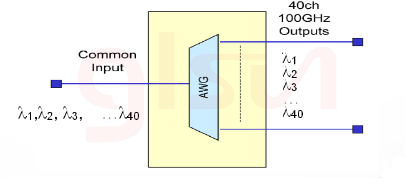

OTS3000-AWG Array Waveguide Grating System

OTS3000-AWG Array Waveguide Grating System can effectively save the optical fiber resource and networking cost by solving optical fiber resource shortage and multi-service transparent transmission for MAN convergence and access layer to enable the network to be constructed and operated in short time. Since its low cost, low power consumption and compact size features, AWG becomes an ideal transmission solution of low price and high performance choice.


· Modularized design, Compact size, Support hot Plug.
· Low insertion loss, Low PDL, High Channel Isolation.
· High stability, High reliability




· WDM System
· MAN (Metropolitan Area Network)



Specifications

Parameters

Unit

OTS3000-AWG

Dimension

mm

160×200×43(WxDxH)

Maximal Power

W

9

Wavelength Range

nm

1529.55 ~ 1560.60

Channel Spacing

Ghz

100

Channel Passband

nm

±0.1

Passband Flatness

dB

≤ 0.5

Channel

λ

40

Insertion Loss

dB

≤ 6.5

Center Wavelength Accuracy

nm

≤ 0.05

Isolation

dB

Adjacent channel isolation ≥25 ;      Non-adjacent channel isolation≥30;

Crosstalk

dB

≥21

Return Loss

dB

SM ≥ 40

PDL

dB

≤ 0.5

Polarization Mode

Dispersion



ps

≤ 0.5

Optical Power

mw

≤ 500

Operating Temperature

-5 ~ +55

Storage Temperature

-20 ~ +70

Relative Humidity



5% ~ 95% (non-condensing)



Ordering Information: OTS3000-AWG-A-B-C-D

A: Channel

B: Multiplex Type

C: The Starting Channel

D: Connector Type

40:40 Channels

X: Others

M: MUX

D: DEMUX

X: Others

C20:C20 1561.42

C21:C21 1560.61

Refer to ITU DWDM

Wavelength Table

LP: LC/PC

X:   Others
