Package Type：Rackmount
Size：484W×566D×88H, 2U

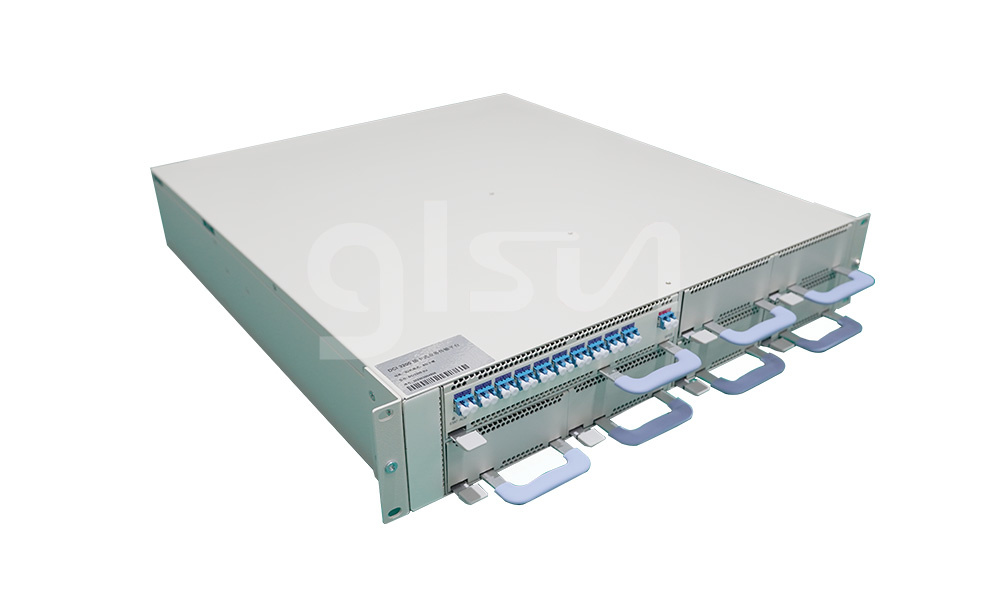

GLSUN Wavelength Selective Switch 2U Chassis is a high-capacity, rack-mountable platform designed to house wavelength selective switch modules for C-band DWDM applications. With a standard 2U form factor, it supports flexible, non-blocking wavelength routing and advanced optical path management for scalable ROADM architectures. Featuring high integration, robust performance, and enhanced expandability, the WSS 2U Chassis is ideal for metro and backbone optical transmission networks and other high-density DWDM deployments
|
WSS2600-2U |
2U chassis |
|
WSS2600-AC/HDC |
Server AC power supply |
|
WSS2600-LDC |
Server DC power supply |
|
WSS2600-2U-FAN |
2U high-speed fan, supports speed regulation and hot-swapping |
|
WSS2600-NMU-A |
Provides 2 × RJ45 electrical management interfaces and 2 × SFP optical management interfaces; supports 10/100 Mbps auto-negotiation; supports external DCN management; supports external optical-module-based out-of-band OSC management; supports Web, B/S, and CLI management |
|
System Parameters |
Unit |
Specification |
|
|
Environmental Requirements |
Operating Temperature |
℃ |
-10~ 40℃ |
|
Storage Temperature |
℃ |
-20℃~ 75℃ |
|
|
Relative Humidity |
℃ |
5% ~ 95%, non-condensing |
|
|
Chassis Dimensions |
2U |
mm |
484W×566D×88H (including mounting ears) |
|
Power Requirements |
AC |
V |
AC 220 V, range 200–240 V (50 Hz / 60 Hz) |
|
DC |
V |
DC −48 V, range −40 to −72 V |
|
|
Power Consumption |
2U |
W |
< 200 |
|
Weight |
2U |
KG |
< 30 |
