Package Type：Rackmount
Switch Type：LCoS
Fiber Configuration：：Twin 2x9, Twin2x20, Twin2x32
GLSUN TWIN series Wavelength Selective Switches are high-performance solutions designed for C-band DWDM networks, offering dual-module architectures with flexible port configurations of 2×9, 2×20, and 2×32. They enable non-blocking, dynamic wavelength routing and precise optical path management, supporting colorless and directionless ROADM architectures. With low insertion loss, high channel isolation, and a compact, reliable design, the TWIN WSS series is ideal for metro and backbone optical networks as well as high-capacity optical transport applications.
Key Features
· Supports both Mux and Demux functions
· Channel bandwidth range: 37.5 GHz ~ 500 GHz
· Operating wavelength range: 190.55 THz ~ 196.675 THz

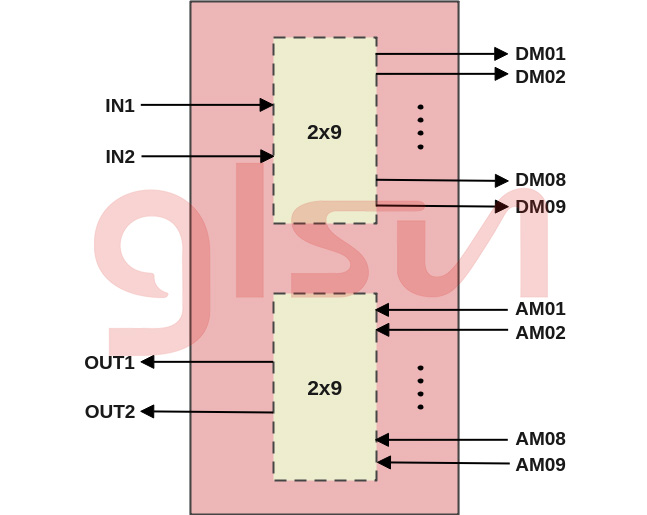

WSS TWIN-2X9
|
Model No. |
WSS T2X9 |
|
Function |
Supports 9-port wavelength-selective multiplexing and demultiplexing, enabling dynamic wavelength pass-through and scheduling |
|
Slot |
2 slots |
|
Frequency Range |
190.55~196.675THz |
|
Channel Bandwidth Range |
37.5GHz ~ 500GHz |
|
Power Adjustment |
Supports per-channel power adjustment |
|
Max. Input Optical Power |
≤27dBm |
|
Port Isolation |
≥20dB |
|
Extinction Ratio |
≥25dB |
|
Attenuation Range |
0~10dB |
|
Insertion Loss |
≤9.5dB |
|
Return Loss |
≥20dB |
|
Switching Time |
≤3s |

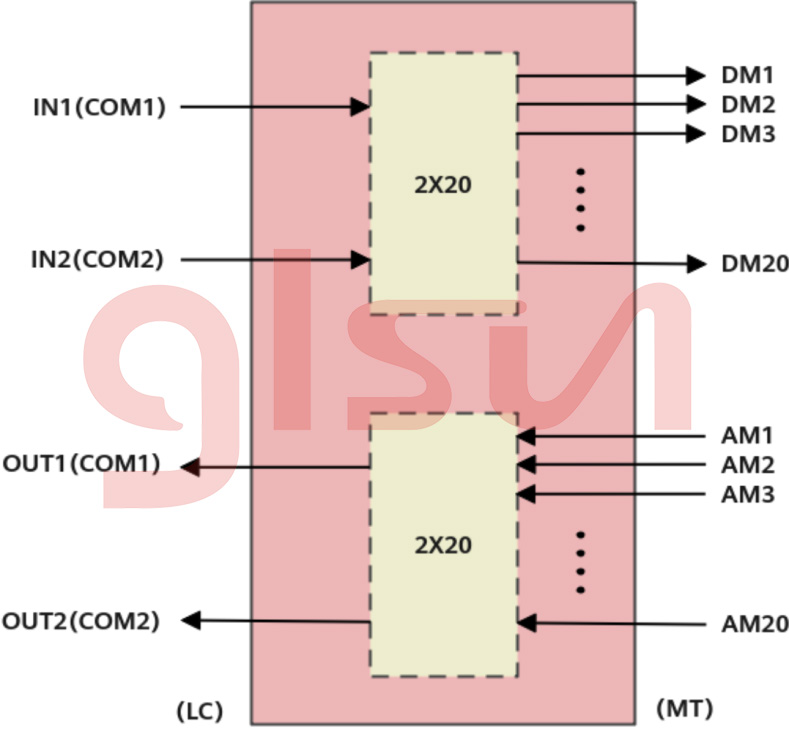

WSS TWIN-2X20
|
Model No. |
WSS T2X20 |
|
Function |
Supports 20-port wavelength-selective multiplexing and demultiplexing, enabling dynamic wavelength pass-through and scheduling |
|
Slot |
2 Slots |
|
Frequency Range |
190.55THz ~ 196.675THz |
|
Channel Bandwidth Range |
37.5GHz ~ 500GHz |
|
Power Adjustment |
Supports per-channel power adjustment |
|
Max. Input Optical Power |
≤27dBm |
|
Port Isolation |
≥20dB |
|
Extinction Ratio |
≥25dB |
|
Attenuation Range |
0~15dB |
|
Insertion Loss |
≤8.5dB |
|
Return Loss |
≥20dB |
|
Switching Time |
≤3s |

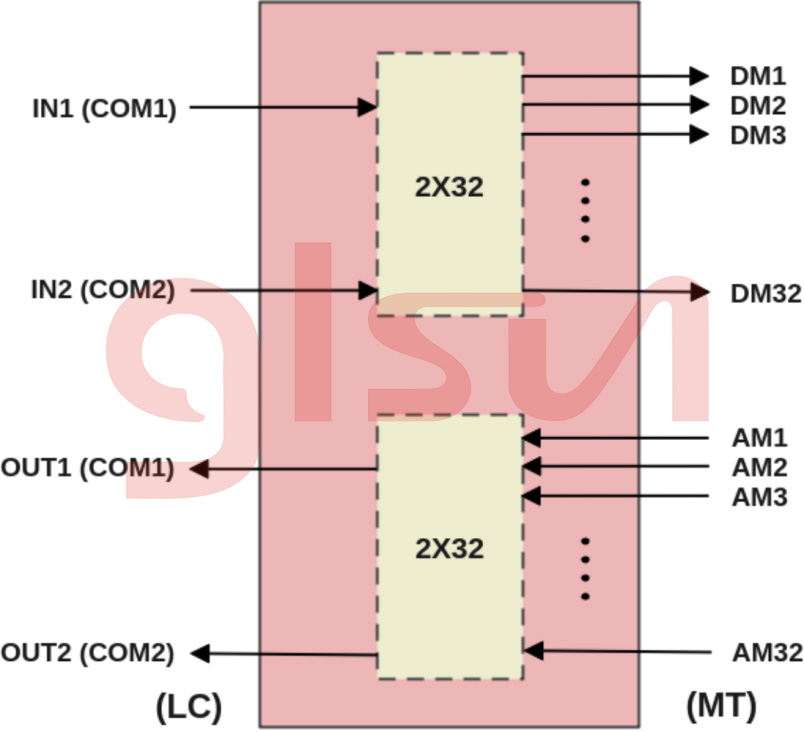

WSS TWIN-2X32
|
Model No. |
WSS T2X32 |
|
Function |
Supports 32-port wavelength-selective multiplexing and demultiplexing, enabling dynamic wavelength pass-through and scheduling |
|
Slot |
2 Slots |
|
Frequency Range |
190.55THz ~ 196.675THz |
|
Channel Bandwidth Range |
37.5GHz ~ 500GHz |
|
Power Adjustment |
Supports per-channel power adjustment |
|
Max. Input Optical Power |
≤27dBm |
|
Port Isolation |
≥20dB |
|
Extinction Ratio |
≥25dB |
|
Attenuation Range |
0~15dB |
|
Insertion Loss |
≤9dB |
|
Return Loss |
≥20dB |
|
Switching Time |
≤3s |
