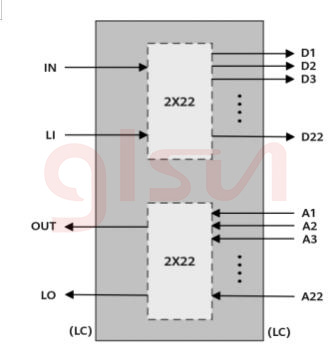

GLSUN 2x22-C120 WSS is a high-density wavelength selective switch designed for C-band DWDM networks supporting up to 120 channels. With a 2×22 port configuration, it enables flexible, non-blocking wavelength routing and efficient optical path grooming across multiple directions. Featuring low insertion loss, high channel isolation, and stable, reliable performance, the 2x22-C120 WSS is well suited for advanced ROADM architectures in metro and backbone networks, as well as high-capacity optical transport systems.

Key Features
· Supports both Mux and Demux functions
· Default 6.25 GHz slice mode, supporting 3.125 GHz, 6.25 GHz, and 12.5 GHz slices
· Channel bandwidth range: 37.5 GHz–500 GHz
· Operating frequency range: 190.55THz–196.675THz
