Package Type：Rackmount
Size：484W×566D×44H, 1U

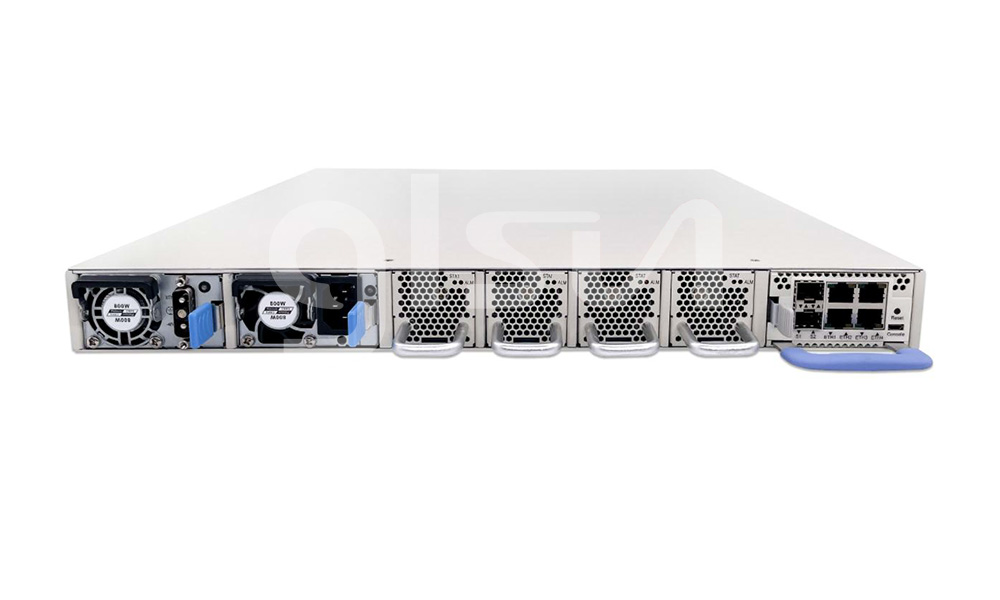

GLSUN Wavelength Selective Switch 1U Chassis is a compact, rack-mountable platform designed to integrate wavelength selective switch modules for C-band DWDM networks. Featuring a standard 1U form factor, it supports flexible, non-blocking wavelength routing and efficient optical path management for ROADM architectures. With high integration, reliable operation, and space-saving design, it is well suited for metro and backbone optical networks as well as high-density transmission applications.
|
WSS3200-1U |
1U chassis |
|
WSS3200-AC/HDC |
Server AC power supply |
|
WSS3200-LDC |
Server DC power supply |
|
WSS3200-1U-FAN |
1U high-speed fan, supports speed regulation and hot-swapping |
|
WSS3200-NMU-A |
Provides 4 electrical management interfaces, RJ45 type, supporting 10/100 Mbps auto-negotiation; Supports external DCN management; Supports external SFP-based out-of-band OSC management; Supports Web, B/S, and CLI management. |
|
System Parameters |
Unit |
Specification |
|
|
Environmental Requirements |
Operating Temperature |
℃ |
-10~ 40℃ |
|
Storage Temperature |
℃ |
-20℃~ 75℃ |
|
|
Relative Humidity |
℃ |
5% ~ 95%, non-condensing |
|
|
Chassis Dimensions |
1U |
mm |
484W×566D×44H (including mounting ears) |
|
Power Requirements |
AC |
V |
AC 220 V, range 200–240 V (50 Hz / 60 Hz) |
|
DC |
V |
DC −48 V, range −40 to −72 V |
|
|
Power Consumption |
1U |
W |
< 800 |
|
Weight |
1U |
KG |
< 15 |
