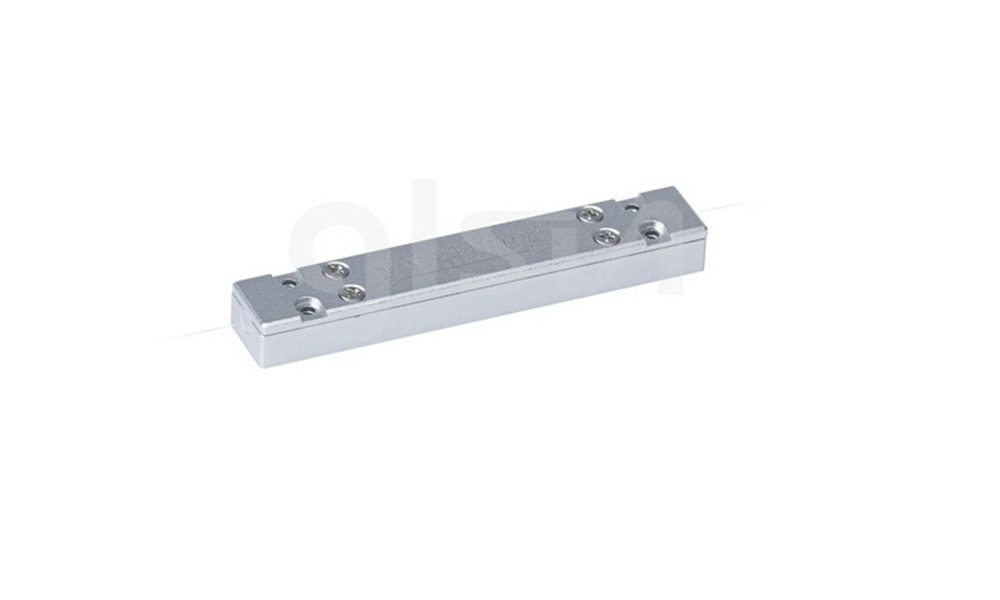

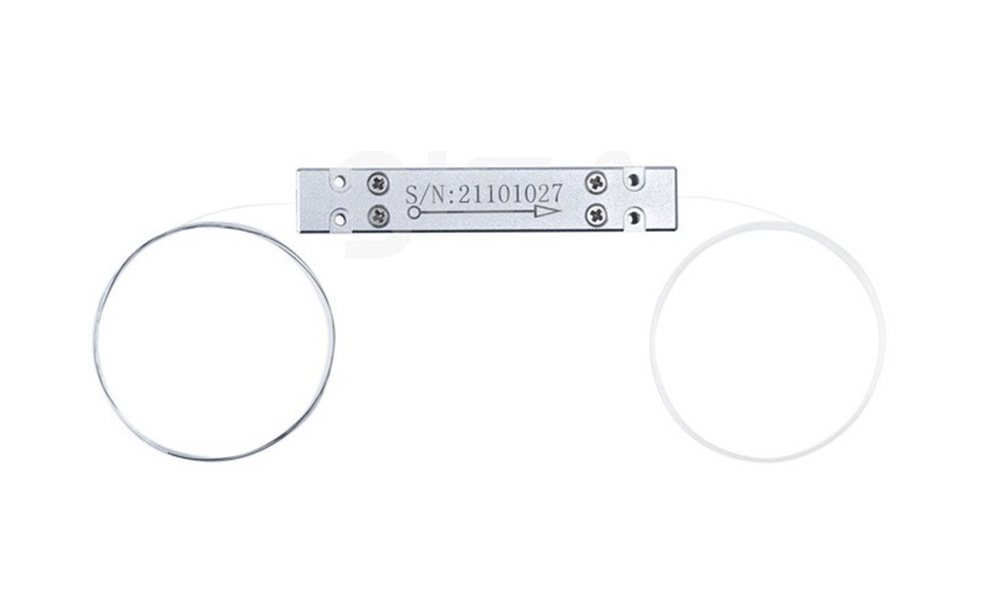

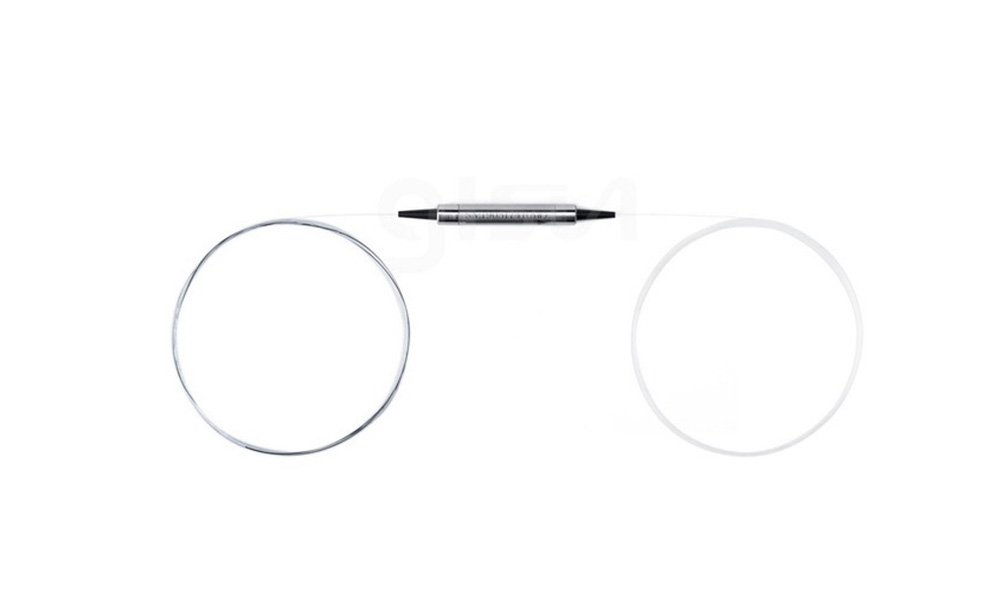

1310/1550/1610nm 1W~10W High Power Optical Isolator
  • 1310/1550/1610nm 1W~10W High Power Optical Isolator
  • High Power Optical Isolator
  • High Power Isolator
  • High Power Fiber Isolator

1310/1550/1610nm 1W~10W High Power Optical Isolator

Center Wavelength:1310nm or 1550nm or 1610nm

Max. Optical Power:1W~10W

Product Details

1310/1550/1610nm High Power Optical Isolator

1310/1550/1610nm 1W~10W optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the stability of optical system.



图片1.png Features

  • Low Insertion Loss and High Isolation
  • Optical Path Epoxy Free
  • Return Loss High Reliability
  • RoHS 6/6 Compliant



图片1.png Applications

  • Communication Systems
  • Testing Instruments
  • EDFA

Specifications

Parameters

Unit

Specification

Center Wavelength (λc)

nm

1310 or 1550 or 1610

Operating bandwidth

nm

±15

Single / Dual Stage



Single

Dual





Grade P

Grade A

Grade P

Grade A

Typ.Peak Isolation

Min. Isolation, λc±10nm, 23℃, all polarization states

dB

42

40

55

52

dB

30

28

43

42

Typ. Insertion Loss, λc 23℃, all polarization states

Max. Insertion Loss, λc  ±20nm, all polarization states, all temperature

dB

0.4

0.5

0.5

0.7

dB

0.5

0.7

0.6

0.9

Min.Return Loss (I/O)

dB

55/50

55/50

55/50

55/50

Max. PDL, 23℃

dB

0.1

0.15

0.1

0.15

Max. PMD

ps

0.2

0.25

0.05

0.1

Max. Optical Power (Continuous Wave)

W

1~10

Max. Peak Power for ns Pulse

KW

10

Max. Tensile Load

N

5

Fiber Type



SMF-28e fiber

Operating Temperature Range

°C

-5 to +70

Storage Temperature Range

°C

-40 to +85

Package Dimension (L×Φ)

mm

5.5×36   250um bare fiber

Note:

1. Customization is available.

2.Specified without connector, and add an additional 0 2dB loss per connector.

Ordering Information

IL -① -②② -③③ -④ -⑤⑤ -⑥

②②

③③

⑤⑤

Single/Dual Stage

Center Wavelength

Handling Power

Grade

Fiber Jacket

Fiber Length

S: Single stage

D: Dual stage

31: 1310nm

55: 1550nm

61: 1610nm

02: 2W

05: 5W

10: 10W

SS: Specify

P: Premium

A: A grade

B:250 um bare fiber

L: 900 um bare fiber

S: Specify

1: 1.0 m

S: Specify
