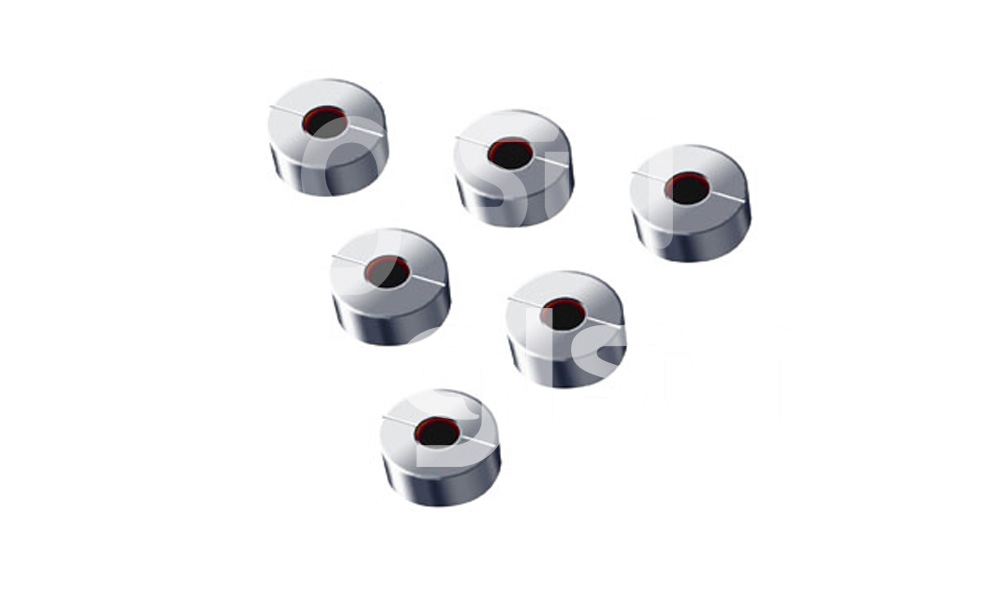

Free Space Isolators FSI
GLSUN's Faraday isolator are devices that allow light to pass in one direction while blocking reflections in the opposite direction. They are used in free-space optical systems, where light travels through air or vacuum, rather than through optical fibers.
Features
• High isolation and low insertion loss
• Polarization dependent
• Compact size
• RoHS 6/6 compliant
Applications
• Optical transmitter
• Laser diode package
Single Stage
|
Parameters |
Unit |
P Grade |
|
|
Center Wavelength (λc) |
nm |
1270~1610 |
|
|
Operating Wavelength(λc) |
nm |
±20 |
|
|
Isolation (λ at 25°C) |
Min |
dB |
>30 |
|
Overall wavelengths and temperature Isolation |
dB |
>20 |
|
|
Insertion Loss (λ at 25°C) |
Max |
dB |
0.30 |
|
Clear Aperture |
mm |
Φ0.4~ or Φ0.12 or others |
|
|
Operating Temperature |
℃ |
-40 to +85 |
|
|
Storage Temperature |
℃ |
-40 to +95 |
|
Dual Stage
|
Parameters |
Unit |
P Grade |
|
|
Center Wavelength (λc) |
nm |
1270~1610 |
|
|
Operating Wavelength(λc) |
nm |
±20 |
|
|
Isolation (λ at 25°C) |
Min |
dB |
>55 |
|
Overall wavelengths and temperature Isolation |
dB |
>30 |
|
|
Insertion Loss (λ at 25°C) |
Max |
dB |
0.50 |
|
Clear Aperture |
mm |
Φ0.4~ or Φ0.12 or others |
|
|
Operating Temperature |
℃ |
-40 to +85 |
|
|
Storage Temperature |
℃ |
-40 to +95 |
|
FSI－A－B－C－D－E－F－G
|
A |
B |
C |
D |
E |
F |
G |
|
Single/Dual Stage |
λ |
Grade |
Center Wavelength |
Size |
CA |
Angle |
|
S: Single stage D: Dual stage |
Z: Positive F: In reverse |
P: P-grade |
31: 1310nm 49: 1490nm 55: 1550nm X: Customized |
01:Φ2.5*L1.1mm 02:Φ2.5*L1.4mm 03:Φ2.5*L2.0mm 04:Φ2.99*L1.4mm
|
40: CA≥Φ0.40mm 50: CA≥Φ0.50mm 60: CA≥Φ0.60mm 70: CA≥Φ0.70mm 80: CA≥Φ0.80mm 90: CA≥Φ0.90mm X: Customized |
0:0 degree 6:6 degree 7:7 degree 8:8 degree X: Customized |
|
|
