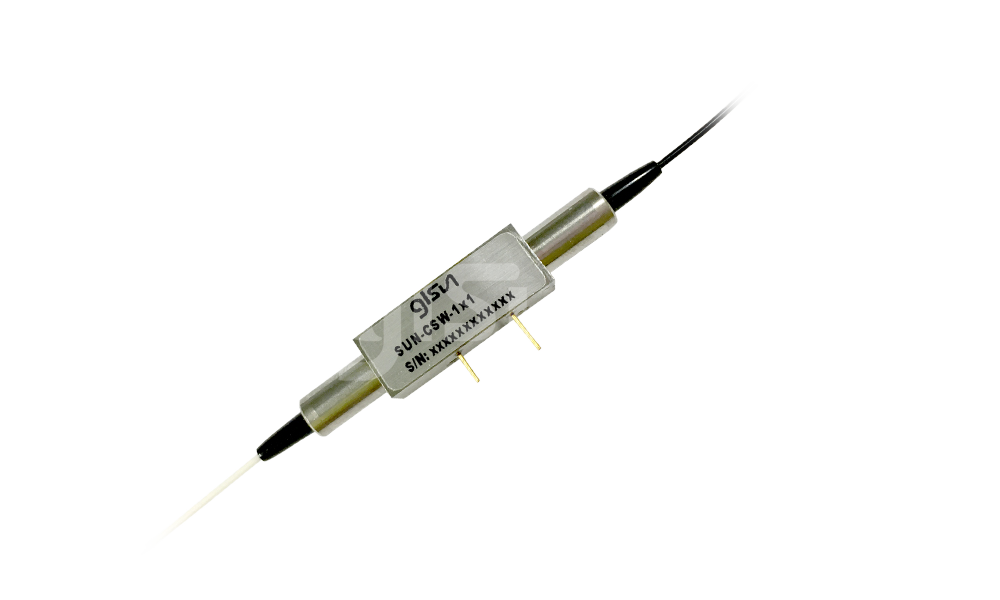

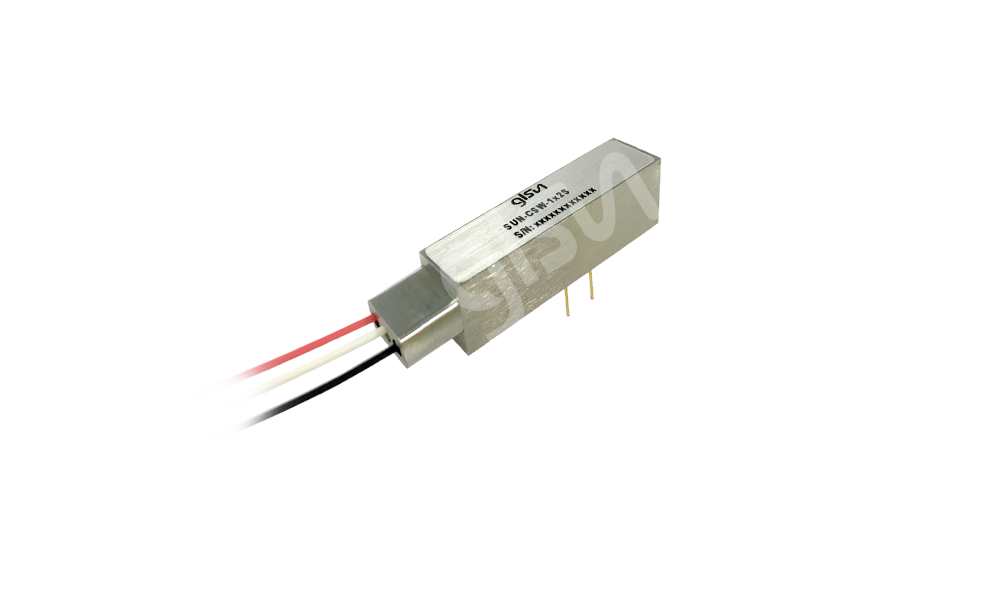

Switch Type：Magneto
Package Type：Device
Fiber Configuration：1x2
Wavelength Range：1520~1580nm
Dimension：( L )39x(W)9x(H)9.5±0.2mm
Features
· High switching speed
· Better durability
· High reliability
· Low voltage drive
· Fail-safe latching
Applications
· Optical channel blocking
· Configurable Add/Drop
· System monitoring,Test&measurement
· Fiber-optics sensing system
|
Parameters |
Unit |
1x2S |
|
Wavelength Range |
nm |
1520~1580 |
|
Test Wavelength |
nm |
1550 |
|
Insertion Loss |
dB |
1.0 |
|
Return Loss |
dB |
≥ 50 |
|
Bidirectional ≥ 30 |
||
|
Crosstalk |
dB |
Unidirectional ≥ 40 |
|
PDL |
dB |
≤ 0.2 |
|
Repeatability |
dB |
≤ ±0.01 |
|
Operating Voltage |
V |
5.0±10% |
|
Drive Current |
mA |
110~190 |
|
Durability |
Cycles |
≥ 30 Bllions |
|
Switching Time |
us |
≤100（typ：50） |
|
Pulse Duration |
us |
200~500 |
|
Switching Type |
n/a |
Latching |
|
Optical Power |
mW |
≤ 500 |
|
Operating Temperature |
℃ |
-5~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Dimension |
mm |
(L )39x(W)9x(H)9.5±0.2 |
SUN-CSW-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Operating Voltage |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
1X2S/B： 1X2 single end Bidirectional 1X2S/U： 1X2 single end Unidirectiona |
SM： SM, 9/125 X： Others |
5： 5.0V |
1550： 1550nm X： Others |
25： 250um 90： 900um X： Others |
05： 0.5m±5cm 10： 1.0m±5cm 15： 1.5m±5cm X： Others |
OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others |
