Switch Type：Magneto
Package Type：Device
Fiber Configuration：1x2
Wavelength Range：1280~1340nm, 1520~1580nm
Fiber Type：PM1310 or PM1550 or Others
Dimension：(L)30.0 ×(W)7.5 ×(H)7.5 ±0.2

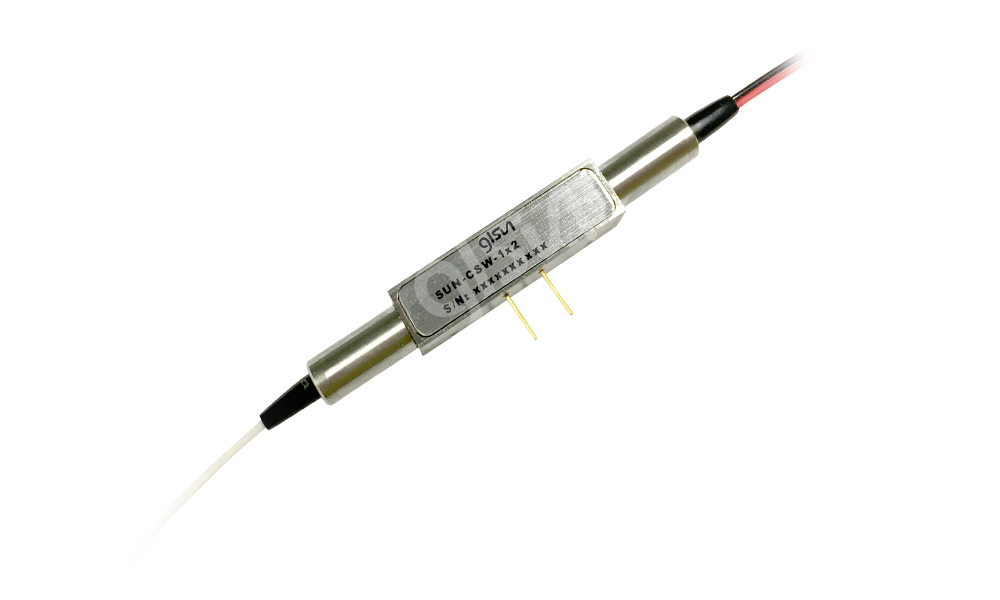

GLSUN polarization maintaining M1x2 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. The PM M1x2 magneto optical switch also has build-in circulator and isolator functions. Products are widely used in aerospace equipment and sensing system.
Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Fail-safe latching
Applications
·Optical switching
·Fault Protection
·Time Delay measurement
·System monitoring
·Sensing system
Specifications
|
Parameters |
Unit |
SUN-CSW-PM-M1x2 |
|
|
Wavelength Range |
nm |
1280 ~ 1340 |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.0 |
|
|
TDL3 |
dB |
≤ 0.30 |
|
|
ER |
dB |
≥ 18 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
≥ 40 |
|
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
us |
≤ 100 |
|
|
Pulse Duration 4 |
us |
200 ~ 500 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Latching |
|
|
Operating Current |
mA |
≤ 200 |
|
|
Maximum Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
(L)30.0 ×(W)7.5 ×(H)7.5 ±0.2 |
|
|
Note: 1 . Test at room temperature and SOP. 2 . Excluding connectors, 0 .2 dB for one pair connectors. 3 . Comparison with room temperature . 4 . Magneto optic switches are powered by pulse voltage instead of continuous voltage . |
|||
SUN-CSW-PM-M1x2-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B：Bidirectional U：Unidirectional |
PM13：PM1310 PM15：PM1550 X：Others |
5.0：5.0V X：Others |
1310：1310nm 1550：1550nm X：Others |
250：250um 900：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm X：Others |
OO：None FA：FC/APC（Align to slow axis） |
