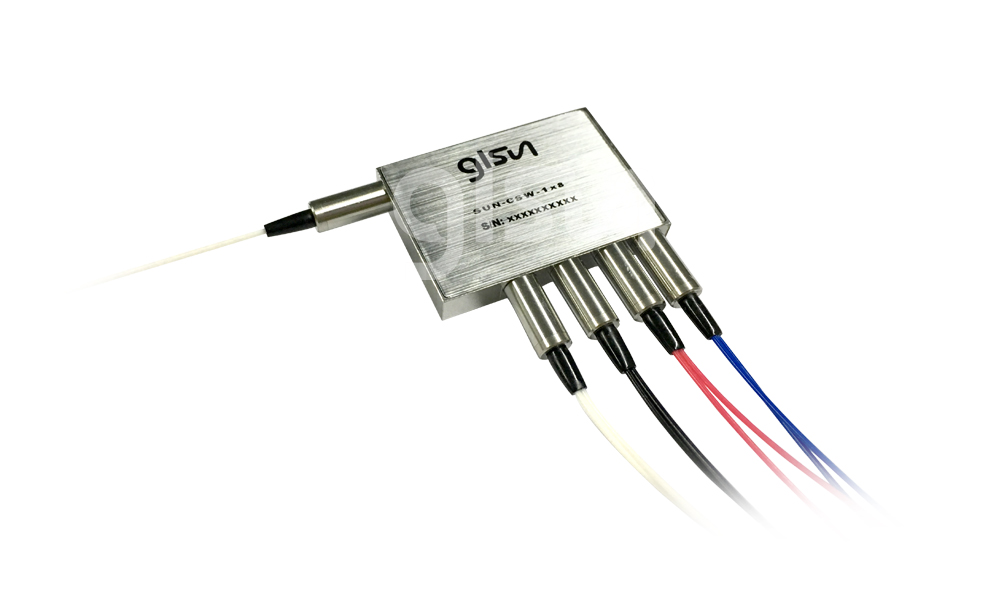

PM M1×8 Magnet Optical Switch
  • PM M1×8 Magnet Optical Switch
  • PM M1×8 Magnet Optical Switch

PM M1×8 Magnet Optical Switch

Switch Type:Magneto

Package Type:Device

Fiber Configuration:1x8

Wavelength Range:1280~1340nm, 1520~1580nm

Fiber Type:PM1310 or PM1550 or Others

Dimension:(L)40.0×(W)33.0×(H)7.5 ±0.2mm

Product Details

GLSUN polarization maintaining M1x8 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. The polarization-maintaining magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The 1x8 magnet optical switch also has build-in circulator and isolator functions. Products are widely used in aerospace equipment and sensing system.


Features
· Solid-state high speed
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Fail-safe latching


Applications
· Optical switching
· Fault Protection
· Time Delay measurement
· System monitoring
· Sensing system

Specifications

Parameters

Unit

SUN-CSW-PM-M1x8

Wavelength Range

nm

1280 ~ 1340

1520 ~ 1580

Test Wavelength

nm

1310

1550

Insertion Loss 1, 2

dB

≤ 2.0

TDL

dB

≤ 0.30

ER

dB

≥ 18

Return Loss

dB

≥ 50

Crosstalk 1

dB

≥ 40

Repeatability

dB

≤ ±0.01

Switching Time

us

≤ 100

Pulse Duration

us

200 ~ 500

Durability

Cycles

≥10 Billions

Switch Type

NA

Latching

Operating Current

mA

≤ 200

Maximum Optical Power 3

mW

≤ 500

Operating Temperature 4

-5 ~ +70

Storage Temperature

-40 ~ +85

Dimension

mm

(L)40.0×(W)33.0×(H)7.5 ±0.2

Note:

 1  Test at room temperature and SOP.

 2  Excluding connectors, 0.2dB for one pair connectors.

 3  High power(≤10W) version available.

 4  Wider temperature range(-40~110℃) version available.

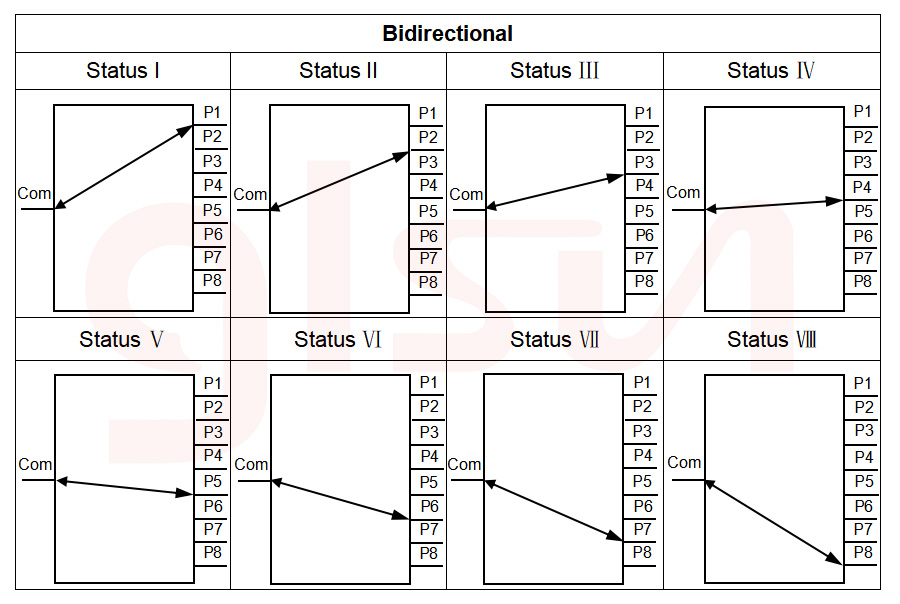

Functional Diagram

Ordering Information

SUN-CSW-PM-M1x8-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

Fiber Length

Connector

B:Bidirectional

U:Unidirectional

PM13:PM1310

PM15:PM1550

X:Others

2.5:2.5V

X:Others

1310:1310nm

1550:1550nm

X:Others

250:250um

900:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

X:Others

OO:None

FA:FC/APC(Align to slow axis)
