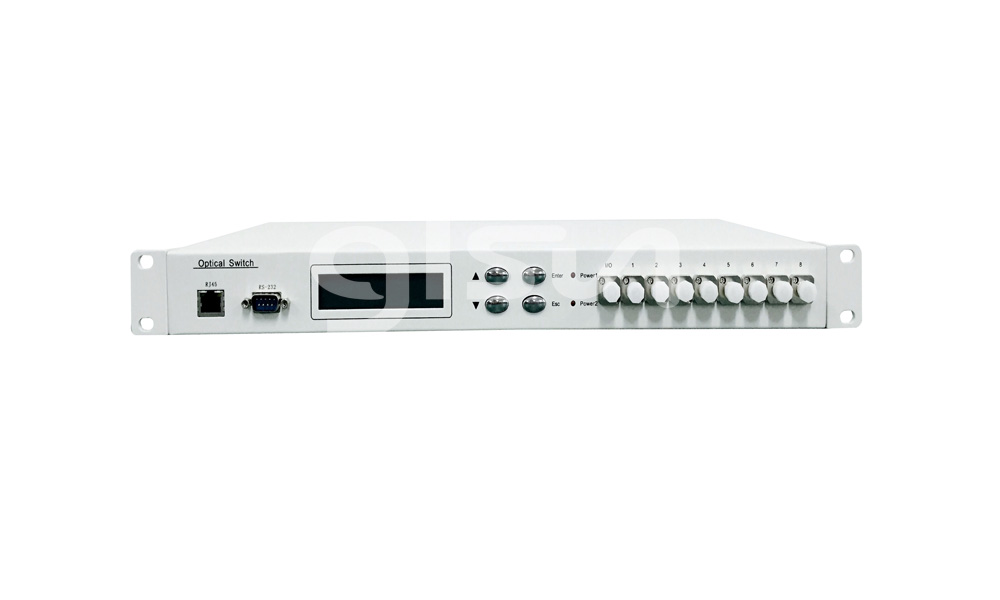

1xN(N≤64) Rack Optical Switch
  • 1xN(N≤64) Rack Optical Switch
  • 1xN(N≤64) Rack Optical Switch

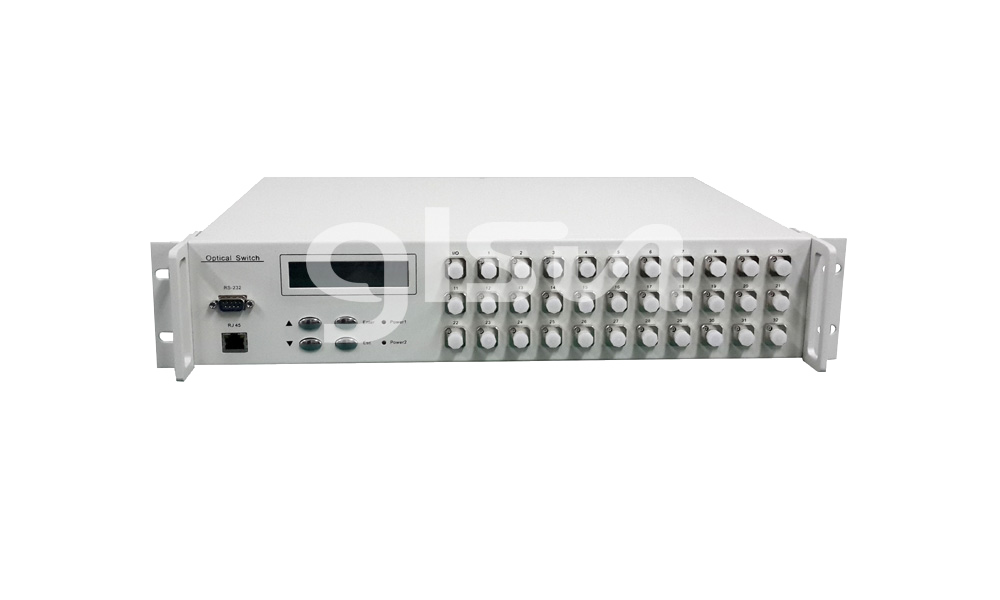

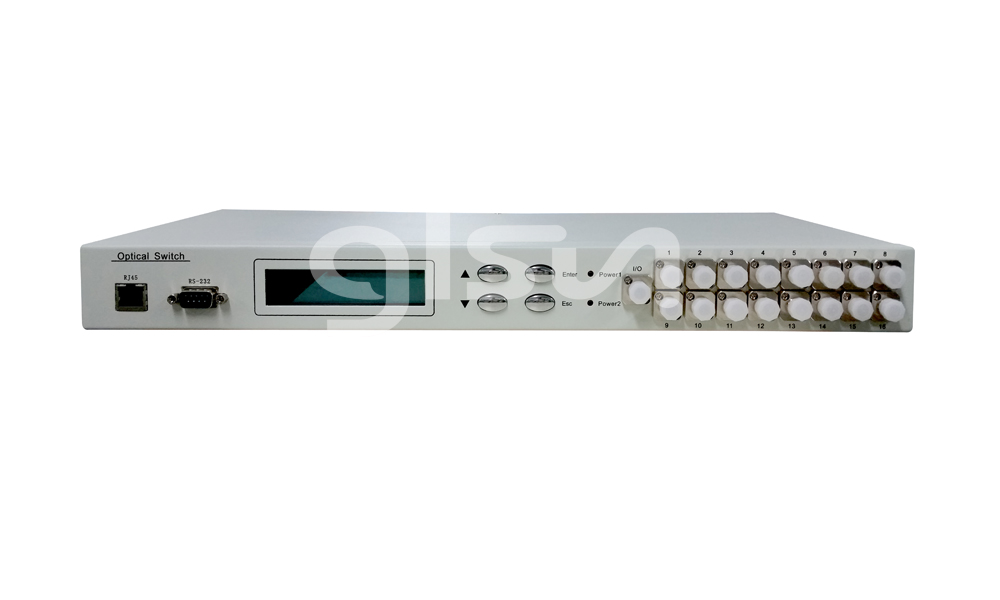

  • 1x16 rack optical switch
  • 1x64 rack optical switch

1xN(N≤64) Rack Optical Switch

Switch Type:Mechanical

Package Type:Rackmount

Fiber Configuration:1xN

Channel:N≤64

Product Details

GLSUN 1xN(N≤64) Rack-mounted Optical Switch, a kind of functional device, is able to control and switch optical route and manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency.



In optical fiber transmission system, this rack mount optical switch is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, rackmount 1xn optical switch is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.



Features

·Low Insertion Loss and Fast Switching
·SerialNet, High Reliability, High Stability
·LCD Display
·RS232 Control and Ethernet Remote Management



Applications

·FITL
·Automatic Measurement
·Optical Network Remote Monitoring
·Cable Monitoring and Maintaining system



Specifications

Parameter

Unit

Indicator

Operating Wavelength

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1310

1310 / 1550

Insertion Loss1

dB

Typ:≤1.0  Max≤1.2

Return Loss

dB

MM≥30

SM≥45(PC)/≥50(APC)

Crosstalk2

dB

≥55

PDL2

dB

-

≤0.1

WDL2

dB

-

≤0.25

Repeatability

dB

≤±0.05

Durability

cycle

≥ 107

Maximum Optical Power

mW

500

Switching Time3

ms

≤10 ( Adjacent sequential channel)

Switch Type



Non-latching

Monitoring Port



RS 232, RJ45

Operating Temperature

-5 ~ 55

Storage Temperature

-20 ~ + 70

Power Consumption

W

≤10

Power Supply

V

AC:85 ~ 264V(50/60Hz) or  DC:36~72V

Case Dimension

mm

 standard 19″ rack

1.In a standard operating environment;

2.At wavelengths of 1310 ± 20nm and 1550 ± 20nm@ 23℃±5 ℃;

3.@23℃±5 ℃.

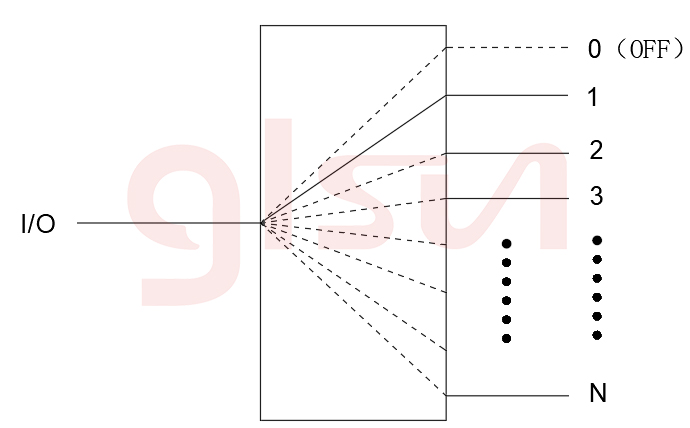

Optical Route

Ordering Information

SUN-FSW-1XN-A-B-C-D-E

N

A

B

C

D

E

NUM

Fiber Type

Operating Wavelength

Power Supply

Connector

Dimension

≤64

SM: SM, 9/125

M5: MM, 50/125

M6: MM, 62.5/125

X: other

850: 850nm

1310: 1310nm

1550: 1550nm

13/15:1310/1550nm

X: other

AC: 85~264V(50/60Hz)

DC: 36~72V

AC/DC: 85~264V(50/60Hz)& 36~72V

AC/AC: double AC

DC/DC: double DC

FP: FC/PC(or FC/UPC)

FA: FC/APC

LC: LC/PC(or LC/UPC)

LA: LC/APC

X: other

1U:482.6x303x44mm

2U:482.6x303x89mm
