Switch Type：Mechanical
Package Type：Rackmount
Fiber Configuration：2xN
Channel：N≤32
Rack Optical Switch features low insertion loss, short switch time and high reliability. Moreover, the switch has LCD and panel buttons for easy operations, and RS232 and RJ45 port for external controls. RJ45 use TCP/IP protocol.
Product Applications
· Auto switch of LAN multi-light source/detector and multi-sensing dynamic monitoring system
· Optical channels monitoring or control
· Tests of optical fiber, optical components, network and field optical cables
· Test system in optical fiber and optical components
· Network Tests of optical fiber transmission
Product Features
· Low Insertion Loss, Fast Switching Speed
· High Reliability, High Stability
· Quickly Switch to the Selected Channel via Panel Button
· Switch Channels via Panel Button or Programmed Command
· Lock Panel Button via Programmed Command
|
Parameter |
Unit |
Indicator |
|
|
Operating Wavelength |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss |
dB |
Typ：≤1.6 Max≤1.8 |
|
|
Return Loss |
dB |
≥30 |
≥45 |
|
Crosstalk |
dB |
≥35 |
≥55 |
|
PDL |
|
- |
≤0.1 |
|
WDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.05 |
|
|
Durability |
cycle |
≥ 107 |
|
|
Maximum Optical Power |
mW |
500 |
|
|
Switching Time |
ms |
≤15 |
|
|
Fiber Type |
um |
50/125（M5）or 62.5/125（M6） |
SM 9/125 |
|
Connector Type |
|
FC/APC or FC/PC or others |
|
|
Monitoring Port |
|
RS 232, RJ45 |
|
|
Operating Temperature |
℃ |
-5 ～ 55 |
|
|
Storage Temperature |
℃ |
-20 ～ + 70 |
|
|
Power Consumption |
W |
≤10 |
|
|
Power Supply |
V |
AC：85 ~ 264V（50/60Hz） or DC：36～72V |
|
|
Case Dimension |
mm |
standard 19″ rack |
|
|
Note: Customization is available. |
|||
SUN-FSW-2×N-A-B-C-D-E-F
|
N |
A |
B |
C |
D |
E |
F |
|
NUM |
Fiber Type |
Operating Wavelength |
Power Supply |
Connector |
Optical Route |
Dimension |
|
≤32 |
SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: other |
850: 850nm 1310: 1310nm 1550: 1550nm 13/15:1310/1550nm X: other |
AC: 85~264V DC: 36~72V AC/DC: 85~264V& 36~72V AC/AC: double AC DC/DC: double DC |
FP: FC/PC FA: FC/APC X: other |

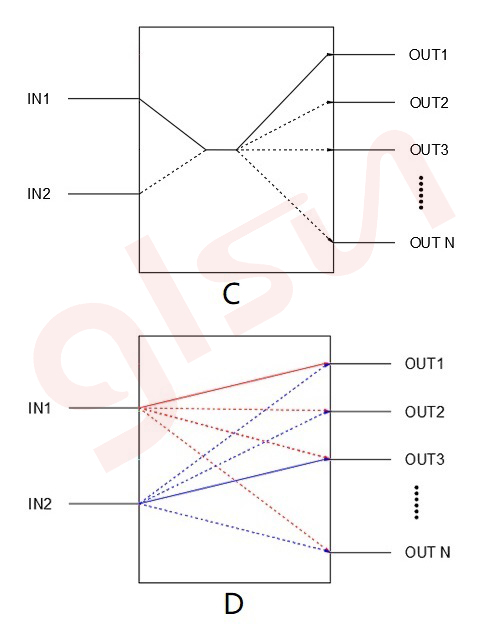

C:cross D:direct |
1U：482.6x303x44mm 2U：482.6x303x89mm |
Note:

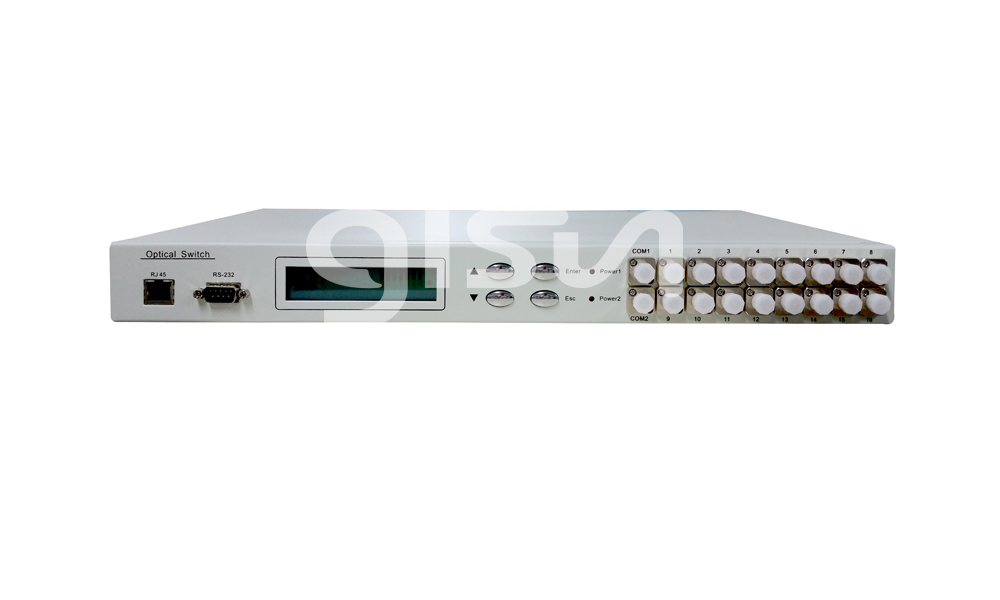

1U (482.6×303×44mm) N≤16；

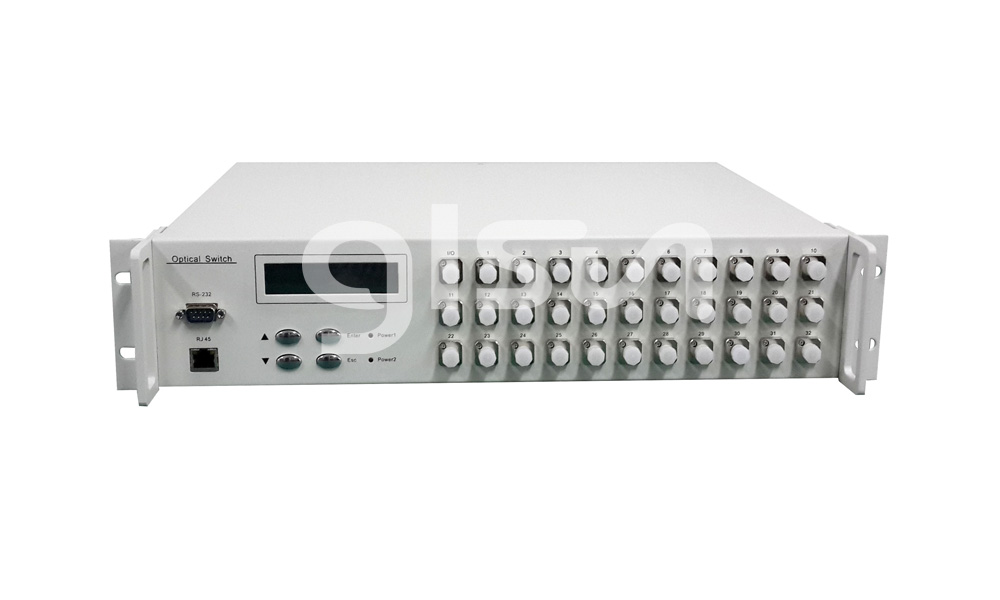

2U (482.6×250×89mm) N≤32.
