D1x2 Optical Switch
  • D1x2 Optical Switch
  • D1x2 Optical Switch

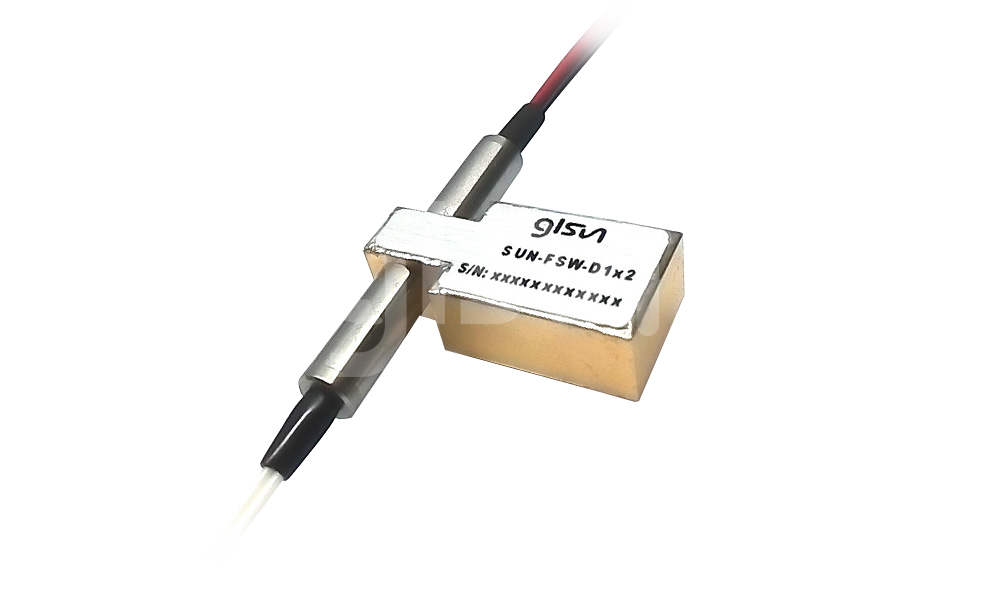

D1x2 Optical Switch

Switch Type:Mechanical

Package Type:Device

Fiber Configuration:1x2

Wavelength Range:850±40 / 1300±40; 1260 ~ 1650nm

Dimension:(L)27.0×(W)12.6×(H)8.2 ±0.2mm

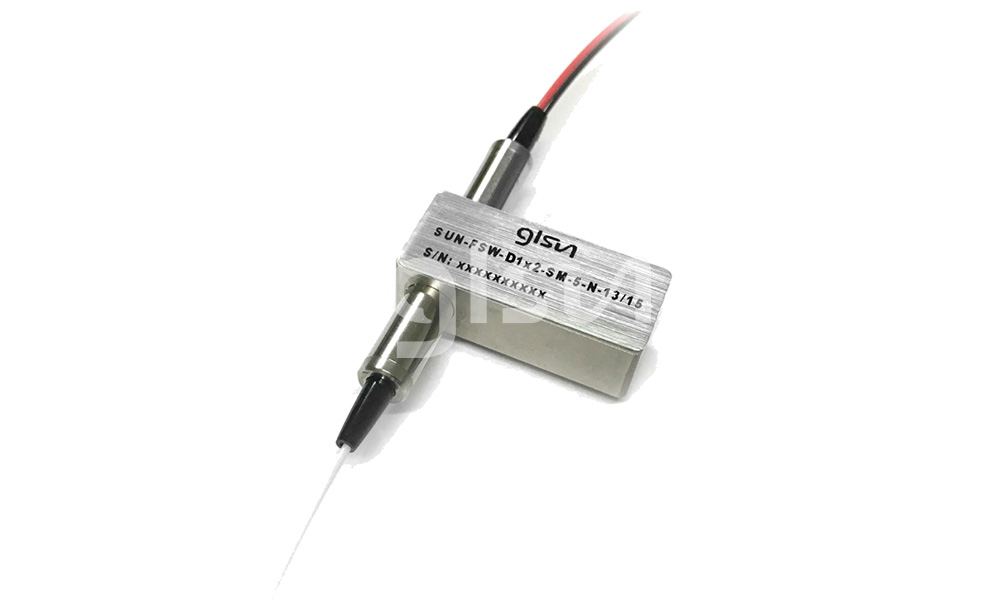

Product Details

SUN-FSW-CD1x2G Fiber Optic Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. This dual 1x2 optical switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, dual 1x2 fiber optic switches can be easy to integrate into a high density optical communication system.



Features

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching



Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN(Metropolitan Area Network)

·Network Security and Monitoring



Specifications

Parameters

Unit

SUN-FSW-CD1×2G

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

≤ 1.0

Return Loss 1, 2

dB

≥ 30

≥ 50

Crosstalk 1

dB

≥ 35

≥ 55

PDL

dB

--

≤ 0.05

WDL 3

dB

≤ 0.25

TDL 4

dB

≤ 0.3

Repeatability

dB

≤ ±0.02

Operating Voltage

V

3.0   or   5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤ 8

Optical Power 5

mW

≤ 500

Operating Temperature 6

-5~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

13

Dimension

mm

(L)27.0×(W)12.6×(H)8.2 ±0.2

Note:

1. Within room temperature and SOP.

2. Excluding connectors.

3. The center wavelength is the reference for the WDL value.

4. The room temperature is the reference for the TDL value.

5. The optical power can be customized to ≤ 10W.

6. The Operating temperature range can be customized from -40 to 85 ℃.

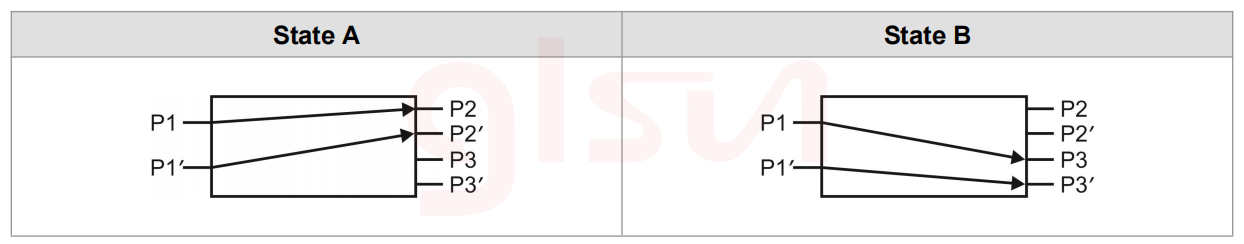

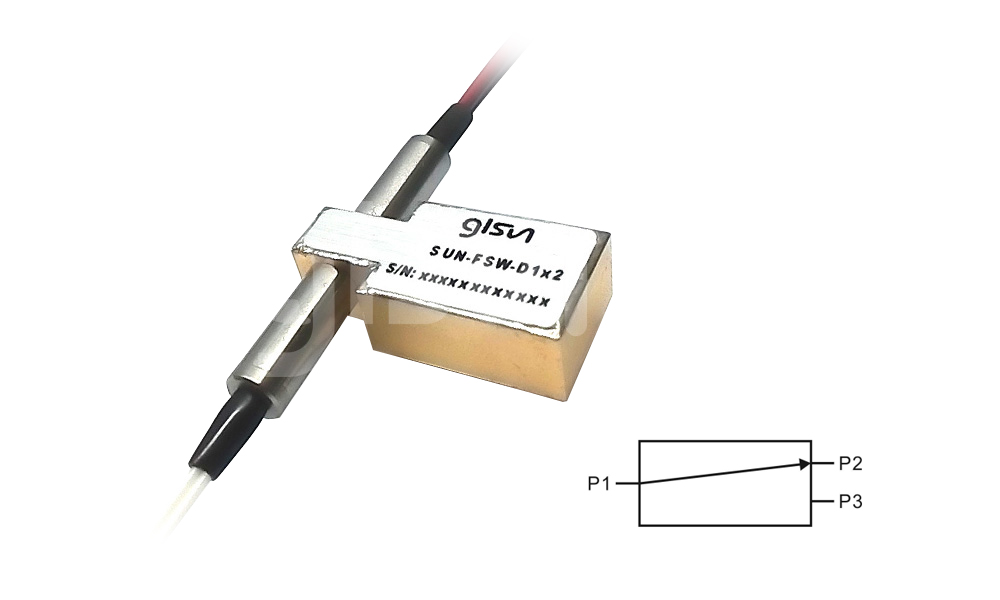

Optical Route

Ordering Information

SUN-FSW-CD1×2G-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM:SM,9/125

M5:MM,50/125

M6:MM,62.5/125

X:Others

3:3V

5:5V

L:Latching

N:Non-latching

850:850nm

1310:1310nm

8513:850/1310nm

1550:1550nm

1315:1310/1550nm

X:Others



25:250um

90:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X:Others

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

DLP: Duplex

LC/PC

X: Others
