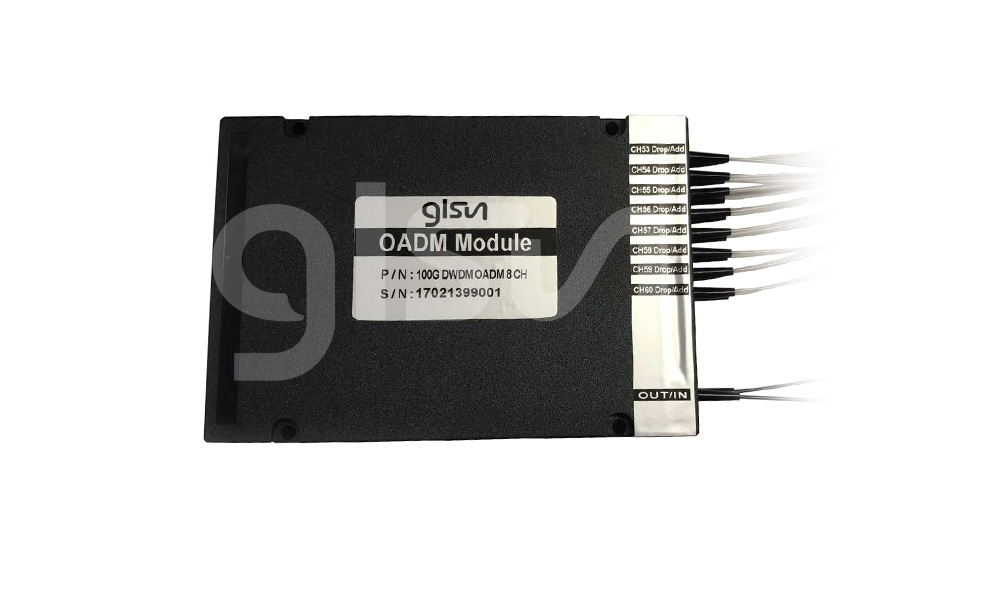

DWDM-OADM Module
  • DWDM-OADM Module

DWDM-OADM Module

Channel Spacing:100Ghz; 200Ghz

Storage Temperature:-40 ~ 85℃

Dimension:ABS Box or LGX Box or 1U(2U) Rackmount

Product Details

DWDM OADM Module




·Low insertion Loss

·Low PDL

·High channel isolation

·Excellent environmental reliability


·WDM system

·CATV

·MAN(Metropolitan Area Network)



Specifications

Parameters

Unit

SUN- OADM-D

Wavelength Range



ITU channels 186.6 to196. 1 THz

Channel             Center

Wavelength

nm

ITU Grid

Channel Spacing

Ghz

100

200

Channel Passband (@- 0.5dB)

nm

0.22

0.5

Channel No.

λ

1

2

4

8

Insertion

Loss

Add/Drop

dB

≤0.8

≤1.2

≤1.7

≤3.0

Express

≤0.8

≤1.6

≤2.5

≤4.0

Adjacent          Channel

Isolation

dB

≥ 30

Non-adjacent Channel Isolation

dB

≥ 45

Wavelength      thermal

stability

nm/

≤ 0.003

Insertion loss thermal stability

dB/

≤ 0.005

≤ 0.007

≤ 0.008

PDL

dB

≤ 0.1

≤ 0.15

≤ 0.20

≤ 0.25

Polarization          mode

dispersion

ps

≤ 0.1

≤ 0.15

Directivity

dB

≥ 50

Return loss

dB

≥ 45

Optical Power

mW

≤ 500

Operating Temperature

-10 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

ABS Box or LGX Box or 1U(2U) Rackmount

Note:

1. Customization is available.

2. Specified without connector, and add an additional 0.2dB loss per connector.



Optical Path Connection Diagram

Ordering Information

SUN-OADM-D-A-B-C-D-E-F-G



A

B

C

E

F

G

Channel No.

Tube Type

Fiber Length

(Include

connector)

Connector

Dimension

Channel

Number Detail

8: 8 channels

n: n channels

25:250um

90:900um

20:2000um

30:3000um

X: Others

05:0.5m±0.05m

10:1.0m±0.05m

15:1.5m±0.05m

X: Others

OO:None

FP: FC/PC

FA:FC/APC

SP: SC/PC

SA:SC/APC

STP:ST/PC

LP: LC/PC

LA: LC/APC

X: Others

1081: 100×80× 10.5mm

1411:140× 115× 18mm

1U:1U

LGX: 156× 102×29mm

X: Others

A CH21 /

CH22 / CH23 / …

D CH21 /

CH22 / CH23 / …

Channel

Number
