Channel Spacing：100Ghz; 200Ghz
Storage Temperature：-40 ~ 85℃

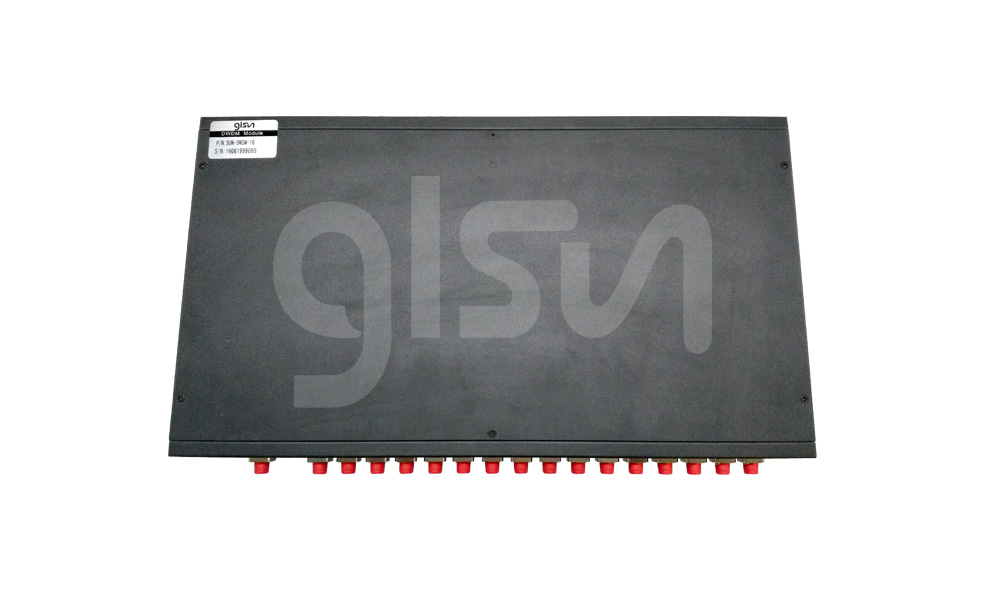

Dimension：ABS Box or LGX Box or 1U(2U) Rack mount

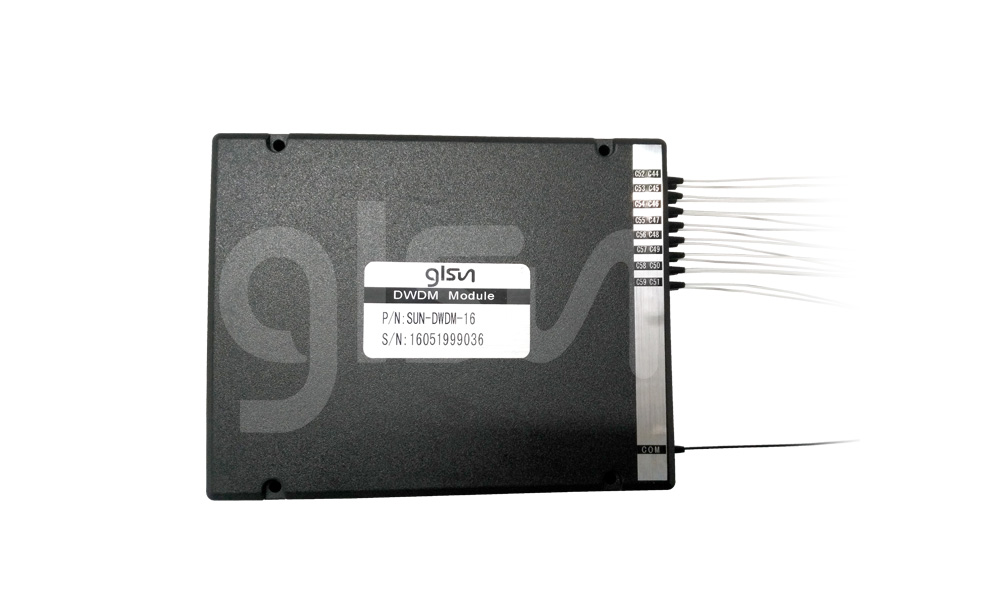

GLSUN DWDM Module (dense wavelength division multiplexer) is an integrated optical module that multiplex and demultiplex multiple optical signals of different wavelengths in a single fiber.
·Low insertion Loss
·Low PDL
·High channel isolation
·Excellent environmental reliability
·WDM system
·CATV
·MAN(Metropolitan Area Network)
|
Parameters |
Unit |
SUN-DWDM Module |
|||||
|
Wavelength Range |
nm |
ITU channels 186.6 to196. 1 THz |
|||||
|
Channel Center Wavelength |
nm |
ITU channels |
|||||
|
Channel Spacing |
Ghz |
100 |
200 |
||||
|
Channel Passband(@-0.5dB) |
nm |
0.22 |
0.5 |
||||
|
Channel No. |
λ |
2 |
4 |
8 |
16 |
32 |
|
|
Insertion Loss 1, 2 |
dB |
≤ 1.4 |
≤ 2.0 |
≤ 2.8 |
≤ 4.5 |
≤ 5.5 |
|
|
Adjacent Channel Isolation |
dB |
≥ 30 |
|||||
|
Non-adjacent Channel Isolation |
dB |
≥ 45 |
|||||
|
Wavelength thermal stability |
nm/℃ |
≤ 0.003 |
|||||
|
Insertion loss thermal stability |
dB/℃ |
≤ 0.005 |
≤ 0.007 |
≤ 0.008 |
|||
|
PDL |
dB |
≤ 0.10 |
≤ 0.15 |
≤ 0.15 |
≤ 0.20 |
≤ 0.25 |
|
|
Polarization mode dispersion |
ps |
≤ 0.10 |
≤ 0.15 |
||||
|
Directivity |
dB |
≥ 50 |
|||||
|
Return loss |
dB |
≥ 45 |
|||||
|
Optical Power |
mW |
≤500 |
|||||
|
Operating Temperature |
℃ |
-10 ~ +70 |
|||||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||||
|
Relative Humidity |
% |
5~ 95 |
|||||
|
Dimension |
mm |
ABS Box or LGX Box or 1U(2U) Rack mount |
|||||
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.(*IL is 0.2 dB higher for connector added.) |
|||||||
SUN-DWDM-A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
Channel No. |
Configurati on |
Tube Type |
Fiber Length (Include connector) |
Connector |
Dimension |
Channel Number Detail |
Channel Spacing |
|
8: 8 channels
8+1: 8 channels + Express port
n: n channels
n+1: n channels + Express port |
M: MUX D: DEMUX M+D: MUX & DEMUX |
25:250um 90:900um 20:2000um 30:3000um X: Others |
05:0.5m±0.05m 10:1.0m±0.05m 15:1.5m±0.05m X: Others |
OO:None FP:FC/PC FA:FC/APC SP:SC/PC SA:SC/APC STP:ST/PC LP: LC/PC LA:LC/APC X: Others |
1081: 100×80× 10.5mm 1411: 140× 115× 18mm 1U:1U LGX: 156× 102×29mm X: Others |
C21 / C22 / C23 / … Channel Number |
100G:100G 200G:200G |
