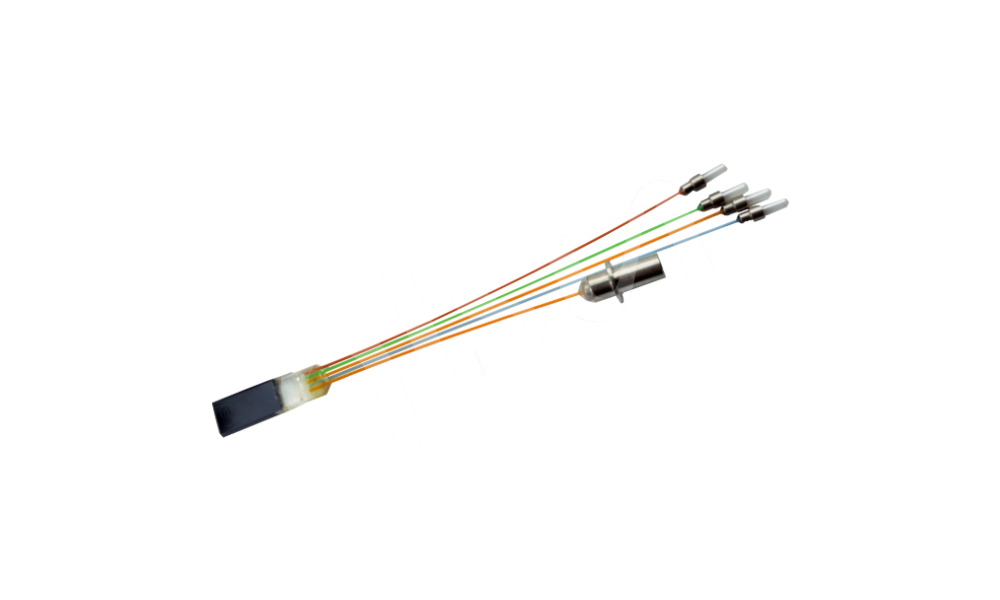

The AWG (Arrayed Waveguide Grating) is fabricated using PLC technology to form an arrayed waveguide grating on a silicon substrate. It features high integration, high channel count, low insertion loss, and excellent batch consistency, making it ideal for mass production and automated assembly.

Specifications

• Center Wavelength (λ): 1270/1290/1310/1330nm
• Bandwidth: ≥15nm; Return Loss: ≥40dB
• Multiplexing Insertion Loss: ≤3.5dB; Temperature Dependent Loss: ≤0.5dB

• Operating Temperature: -40～+85℃

Applications

Primarily used in optical transceiver transmitters (TOSA) and receivers (ROSA), the AWG module is widely deployed in 100G high-speed optical transceivers for signal multiplexing and demultiplexing.
