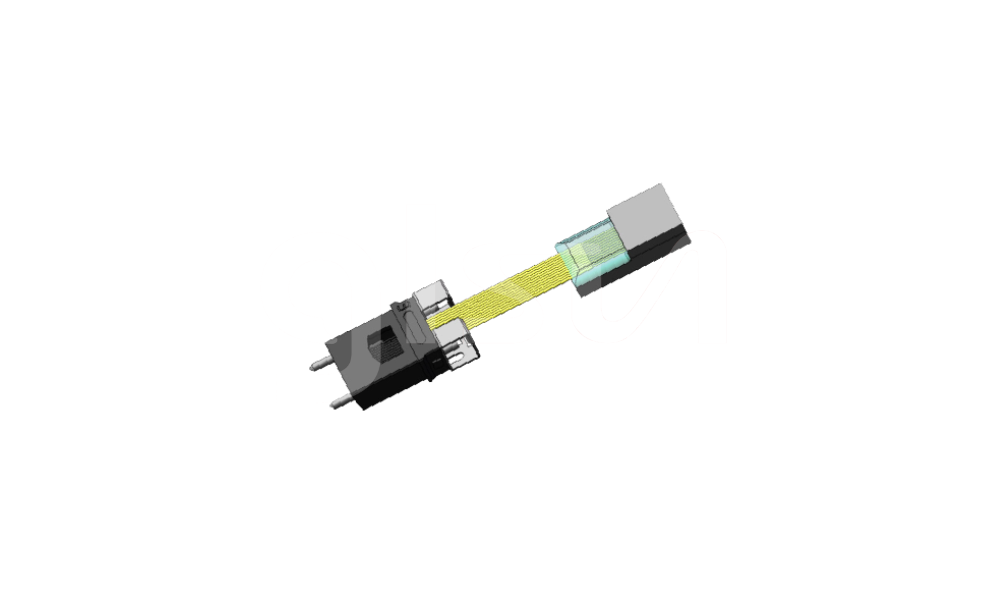

GLSUN MT-FA fiber array uses a total reflection FA as the RX receiving end and is directly coupled with the PD Array to complete the photoelectric conversion of the optical path. By leveraging the compact size of the MT ferrule and its ability to support multiple channels, MT-FA enables parallel transmission of multiple optical paths. It is currently widely used for high-speed optical transceiver internal connections.

Specifications

• Central Wavelength (λ): 850~1650nm
• Position Offset: <1.0 μm (customizable to 0.3 / 0.5 / 0.7 / 1.0 μm depending on channel count and required precision)
• Insertion Loss: ≤0.50dB
• Operating Temperature: -40℃ to +85℃


Applications

MT-FA features stable transmission, high reliability, and customizability. It is widely used in optical transceivers and data centers.
