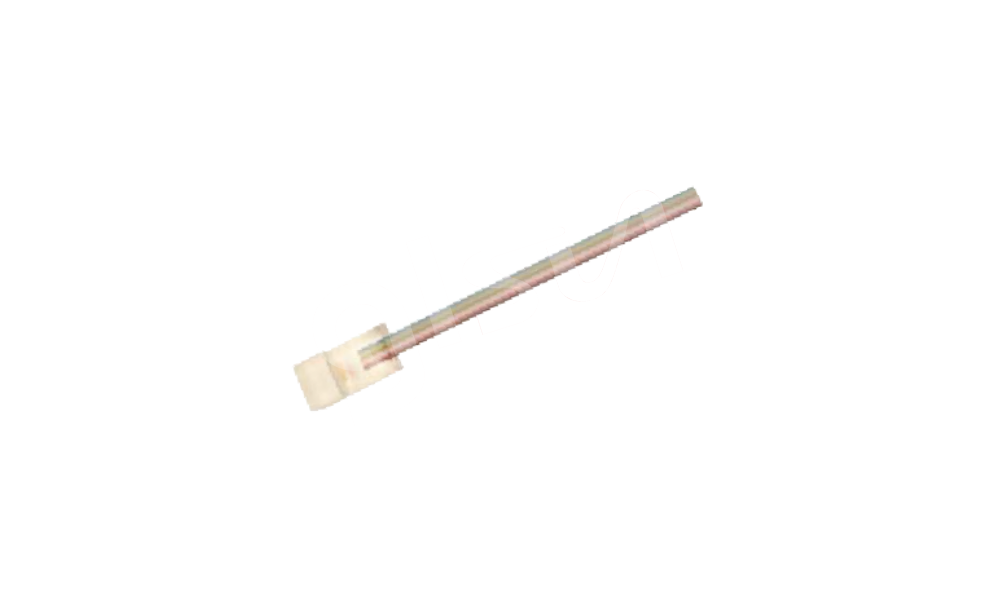

The Fiber Array (FA) utilizes a V-groove base to precisely arrange individual fibers or ribbon fibers in a fixed-pitch linear array. The base is typically etched or cut with multiple grooves on its surface, into which fibers are pressed and fixed with high alignment accuracy. This structure enables compact packaging and efficient optical coupling, making it ideal for integration into photonic systems.

Specifications

• Channel Count: 4CH
• Fiber Type: MF (9/125), MMF (50/125), or customized options
• Operating Wavelength: 1260-1620nm
• Insertion Loss (FA+FSI): ≤0.4dB

• Operating Temperature: -40～+85℃
• Storage Temperature: -40°C to +85°C

Applications

Widely used in optical communication, optical sensing, LiDAR systems, and medical or cosmetic laser applications.
