Optical Bypass Protection Module
  • Optical Bypass Protection Module

Optical Bypass Protection Module

Wavelength Range:1260 ~ 1650nm

Storage Temperature:-30 ~ 80℃

Dimension:120×80×18mm

Product Details

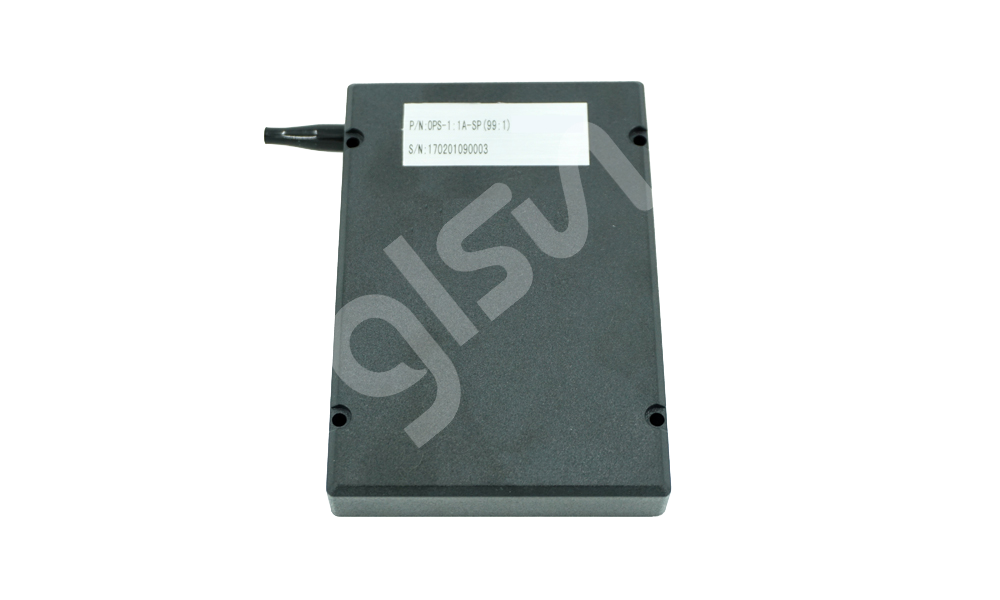

Optical Bypass Protection Module - OBP Module



Optical bypass protection (OBP) is a technology that is used to protect optical fiber communication networks from failures. OBP systems work by automatically bypassing faulty nodes in the network, so that data can continue to flow even if a node fails. This can help to prevent network outages and ensure that critical data is always available.




•Wide Wavelength Range
•Low Crosstalk
•High Stability, High Reliability
•Modularized Design

Specifications

Parameters

Unit

SUN-OBP-SS-L

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss

dB

Typ: 1.2   Max: 1.5

Return Loss

dB

SM ≥ 45

Crosstalk

dB

SM ≥ 50

PDL

dB

≤ 0.20

WDL

dB

≤ 0.30

PD dark current

nA

<1

PD responsivity

mA/W

24 ~ 40

PD report accuracy

dB

±0.5 (at -50 to 23 dBm)

Operating voltage

V

4.5 ~ 5.5

Operating current

mA

80 ~ 120

Operating Temperature

-5 ~ +60

Storage Temperature

-30 ~ +80

Dimension

mm

120×80×18

Note: Customization is available.

Ordering Information

SUN-OBP-M-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Type

Fiber Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

Dimension

SS: OBP-SS

(Bi-direction bypass in duplex fibers, non-latching type)



SS-L: OBP-SS-L

(Bi-direction bypass in duplex fibers, latching type)



X: Others

SM: SM, 9/125

X: Others

1310:1310nm

1550:1550nm

1310/1550:1310/1550nm

X:Others

90:900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA:ST/APC

LP: LC/PC

LA: LC/APC

X: Others

01: 120×80×18(ABS)

X: Others
