MEMS MxN Optical Switch Module
  • MEMS MxN Optical Switch Module
  • MEMS MxN Optical Switch Module

MEMS MxN Optical Switch Module

Switch Type:MEMS

Package Type:Module

Fiber Configuration:MxN

Optical Ports:M≤32,N≤32

Fiber Type:SM 9/125

Product Details

GLSUN's MEMS MxN optical switch is built using MEMS mirror technology. The mems mxn optical switch is fully bi-directional and transparent to the full wavelength range of the installed fiber. The "MxN" in the term represents the number of inputs (M) and outputs (N), so an MxN optical switch can handle a variety of configurations, such as 8x8, 16x16, or even larger, with the ability to route any input port to any output port. GLSUN MEMS matrix optical switch is a proprietary optical switch structure that allows any of the inputs to connect to any of the outputs in a fully non-blocking, all-optical cross-connect configuration.


Features
· Low InsertionLoss
· Fast Switching Speed
· High Stability


Applications
· LAN multi light source/detector automatic switching and optical sensing multi-point dynamic monitoring system.
· Multi channel optical monitoring in optical transmission systems.
· Testing of optical fibers, optical devices, networks, and field engineering optical cables.
· A testing system composed of optical fibers and various optical devices.

Specifications

Parameters

Unit

SUN-MEMS-MxN

Min.

Typ.

Max.

Operation Wavelength Range

nm

1260~ 1360 or 1525~ 1565

Insertion Loss1,2

8 x 8

dB





2.0

8 x 16





2.5

16 x 16





2.5

24 x 24





3.0

32 x 32





3.5

Return Loss1,2

dB

45





Crosstalk1,3

dB

45





Polarization Dependent Loss1,2

dB



0.1

0.25

Wavelength Dependent Loss1,2,4

dB





0.5

Switching Time

ms





30

Repeatability5

dB



±0.05



Maximum Optical Input Power

mW





500

Durability

Cycles

109





Operating Temperature

-5



55

Storage Temperature

-20



70

Relative Humidity(non-condensing)

%

5



95

Control Interface



DB15

Power Supply



DC: 5V or 12V

Power Consumption

W

30

Dimension (WxDxH)

mm

282.6 x 226 x 78.2

Note:

1 Within operating temperature and SOP,MM CPR>16.

2 Excluding connectors.

3 Power off isolation same as cross-talk.

4 WDL is specified in a ±20 nm of 1310nm or ±20 nm of 1550nm,at 23°C.

5 Repeatability is defined after 100 cycles.

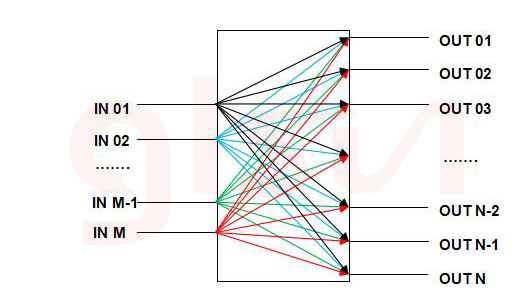

Optical Route

Ordering Information

SUN-MEMS-MxN-A-B-C-D-E-F-G

A

B

C

D

E

F

G

H

Channel

No.

Fiber Type

Test

Wavelength

Tube Type

Fiber  Length

Connector

Interface

Supply

voltage

M:≤32

N:≤32



SM:9/125



1310: 1310nm

1550: 1550nm

1310/1550: 1310/1550nm



90:900um



05:0.5±0.05m

10:1.0±0.05m

15: 1.5±0.05m

X: other



FA:FC/APC

FP:FC/PC

LA:LC/APC

LP:LC/PC

X:other



R:RS232

U:UART



5V:5VDC

12V:12VDC
