1xN Cascade Optical Switch
  • 1xN Cascade Optical Switch
  • 1xN Cascade Optical Switch

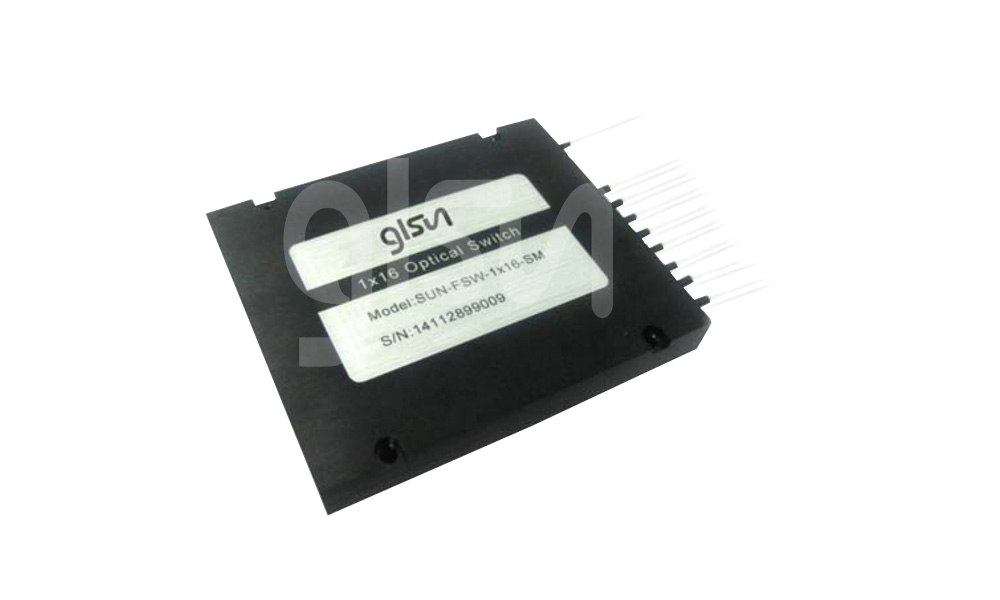

1xN Cascade Optical Switch

Switch Type:Mechanical

Switch Type:Module

Fiber Configuration:1×N

Wavelength Range:850±40 / 1300±40; 1260 ~ 1650nm

Dimension:(L)130×(W)95×(H)15mm

Product Details

SUN-FSW-1×N Cascade Optical Switch is an ideal component for OADM, OXC, system monitoring and protection. With compact package, this fiber optic switch can be easy to integrate into a high density optical communication system.


·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path


·R&D in Laboratory

·System Monitoring

·OADM

·OXC





Specification

Parameters

Unit

SUN-FSW-1×4

SUN-FSW-1×8

SUN-FSW-1×16

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss(SM)

dB

Typ: 0.8 Max: 1.0

Typ: 1.4 Max: 1.6

Typ: 1.8 Max: 2.0

Insertion Loss(MM)



Typ: 1.0 Max: 1.2

Typ: 1.6 Max: 1.8

Typ: 2.0 Max: 2.2

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤ 0.15

WDL

dB

≤ 0.35

Repeatability

dB

≤ ±0.05

Power Supply

V

5.0 ± 5%

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-5 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)130×(W)95×(H)15

Optical Route

Ordering Information

SUN-FSW-A-B-C-D-E-F-G

A

B

C

D

E

F

G

H

Switch Type

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

1x4

1x8

SM:SM, 9/125

M5:MM,50/125

M6:MM,62.5/125

X:Others

3:3V

5:5V



L:Latching

N:Non-latching

850:850nm

1310:1310nm

1550:1550nm

1310/1550:

1310/1550nm

X:Others

25:250um

90:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X:Others

OO:None

FP:FC/PC

FA:FC/APC

SP:SC/PC

SA:SC/APC

LP:LC/PC

LA:LC/APC

X:Others
