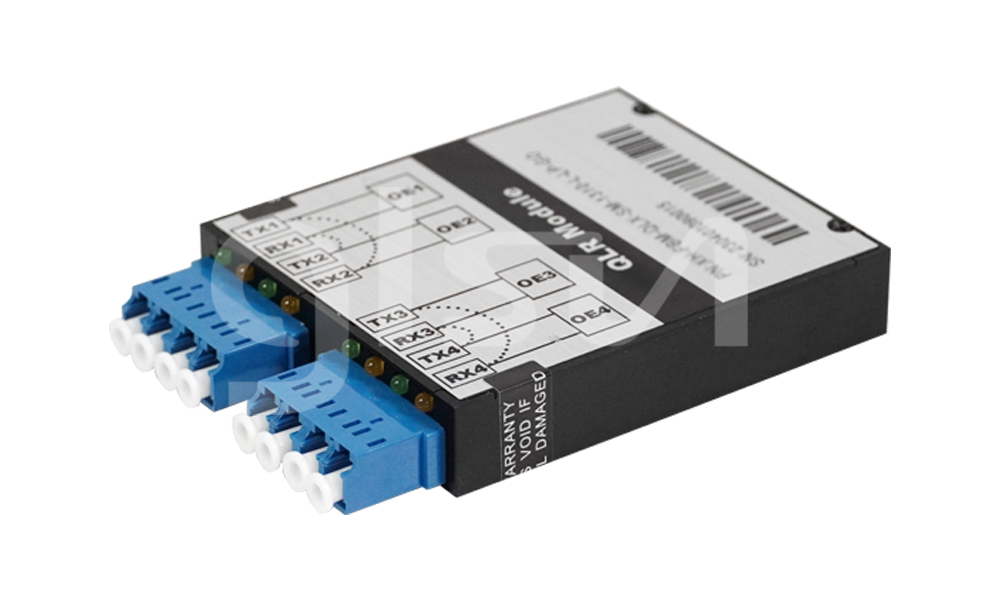

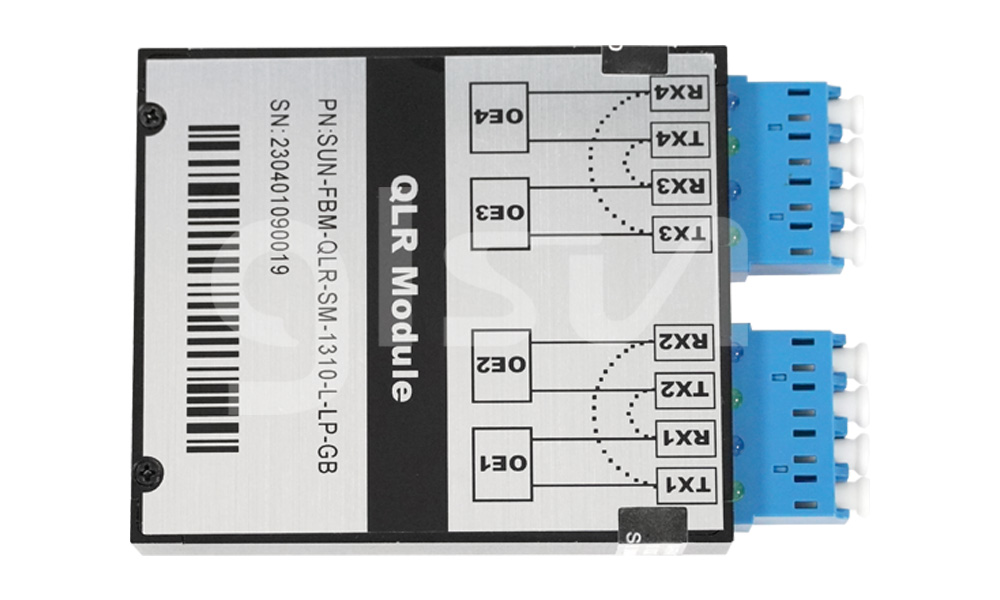

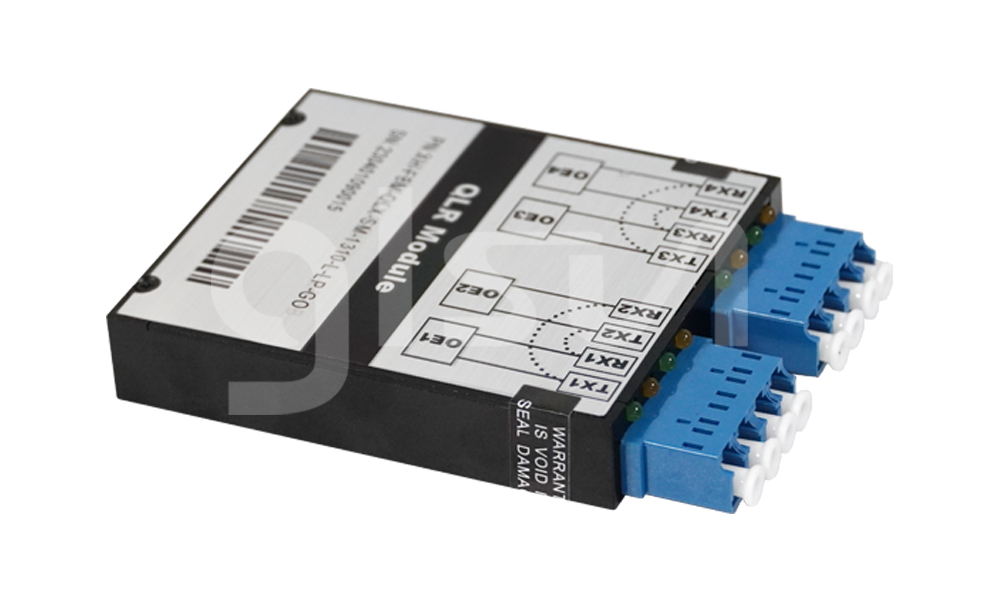

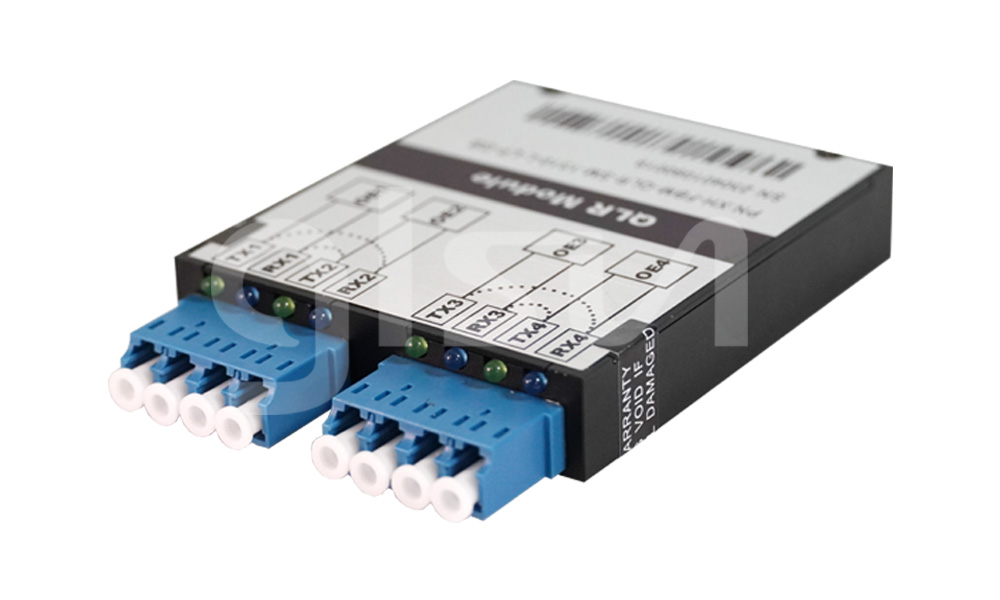

The QLR fiber bypass module is design expressly for Intrusion Prevention System (IPS) provides complete visibility to network traffic, it also introduces a point of failure should the IPS lose power, cable fail or application freeze. The module can support 10.3Gbit/s in full duplex mode per port of data transfer rate and Single-mode fiber operations.

The QLR fiber bypass modules designed to be compliant digital diagnostic monitoring function:
Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power.
The post-amplifier of the QLR fiber bypass module also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Features
·Compliant with IEEE 802.3ae 10GBASE-LR
·Laser Class 1 Product with comply with Requirements of IEC 60825-1 and IEC 60825-2
·Link Distances at 10Gbps 10Km links with 9/125um Single Mode Fiber Cable
·EEPROM with Series ID Function
·+5V/+3.3V Power Supply and TTL Logic Interface
·LC Connector interface with optical Bypass Function
·LED indicate operation function

Applications
· In-line traffic Monitoring, Analyzing and Optimization
· Intrusion Prevention System
· Quality of Service
· In-line Security
· Load Balance
· Web Acceleration Appliances
