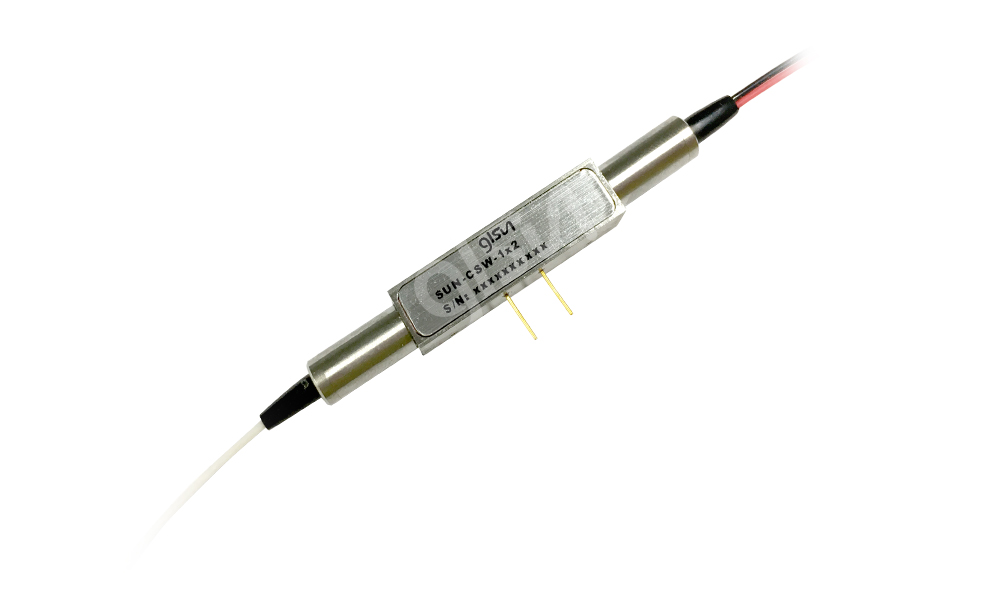

High Power M1x2 Magnet Optical Switch
  • High Power M1x2 Magnet Optical Switch
  • High Power M1x2 Magnet Optical Switch

High Power M1x2 Magnet Optical Switch

Switch Type:Magneto

Package Type:Device

Fiber Configuration:1x2

Wavelength Range:1520~1580nm

Dimension:(L)30.0×(W)7.5×(H)7.5 ±0.2

Product Details

Description

The high power M1x2 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. The switch also has build-in circulator and isolator functions. Products are widely used in aerospace and military equipment. The switch is designed to withstand high-power /high-energy lasers in such applications as LIDAR.



Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Fail-safe latching



Applications
·Optical switching
·Fault Protection
·Time Delay measurement
·System monitoring
·Sensing system



Specifications

Parameters

Unit

HP-M1x2

Wavelength Range

nm

1520 ~ 1580

Test Wavelength

nm

1550

Insertion Loss 1, 2

dB

≤ 1.0

TDL

dB

≤ 0.30

PDL

dB

≤ 0.20

Return Loss

dB

≥ 50



Crosstalk



dB

Bidirectional ≥ 20

Unidirectional ≥ 40

Repeatability

dB

≤ ±0.01

Switching Time

us

≤ 100

Pulse Duration

us

≥ 200

Durability

Cycles

≥100 Billions

Switch Type

NA

Latching

Operating Current

mA

≤ 200

Maximum Optical Power

W

5

Operating Temperature

-5 ~ +70

Storage Temperature

-40 ~ +85

Dimension

mm

(L)30.0×(W)7.5×(H)7.5 ±0.2

Note:

1. Test at room temperature and SOP.

2. Excluding connectors, 0.2dB for one pair connectors.

3. Higher power-handling available upon request.

Route

Ordering Information

SUN-CSW-HP-M1x2-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

Fiber Length

Connector

H:

Hi-power: 100μJ for  pulsed or 5W for CW

SM:SM,9/125

X:Others

2.5:2.5V

5.0: 5.0V

1550:1550nm

X:Others

250:250um

900:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

X:Others

OO:None

FC:FC/PC

FA:FC/APC

SC:SC/PC

SA:SC/APC

LC:LC/PC

X:Others
