M1x3 / M1x4 Optical Switch
  • M1x3 / M1x4 Optical Switch
  • M1x3 / M1x4 Optical Switch
  • glsun-m1x3-optical-switch
  • glsun-m1x3-optical-switch-1

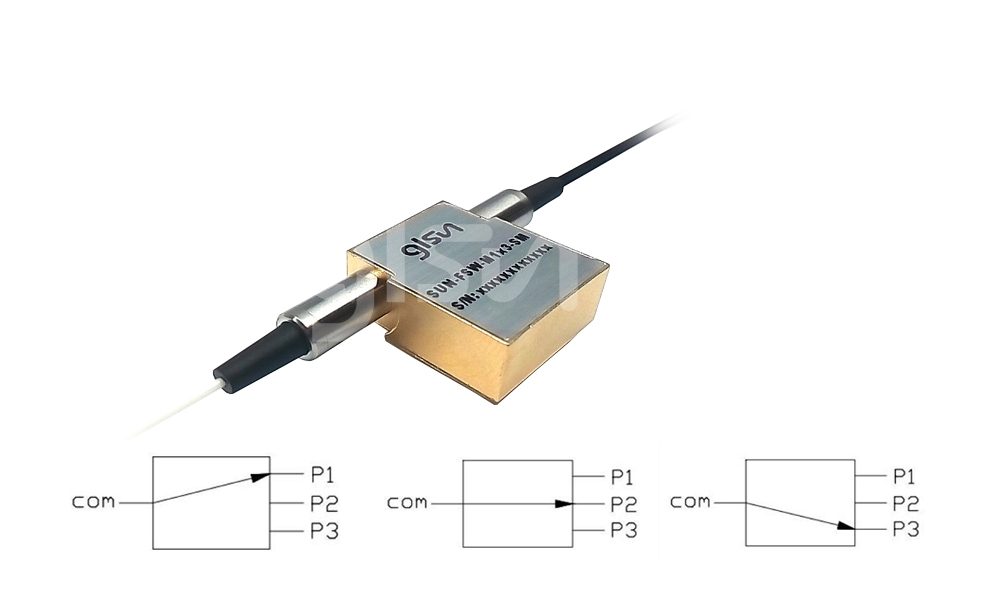

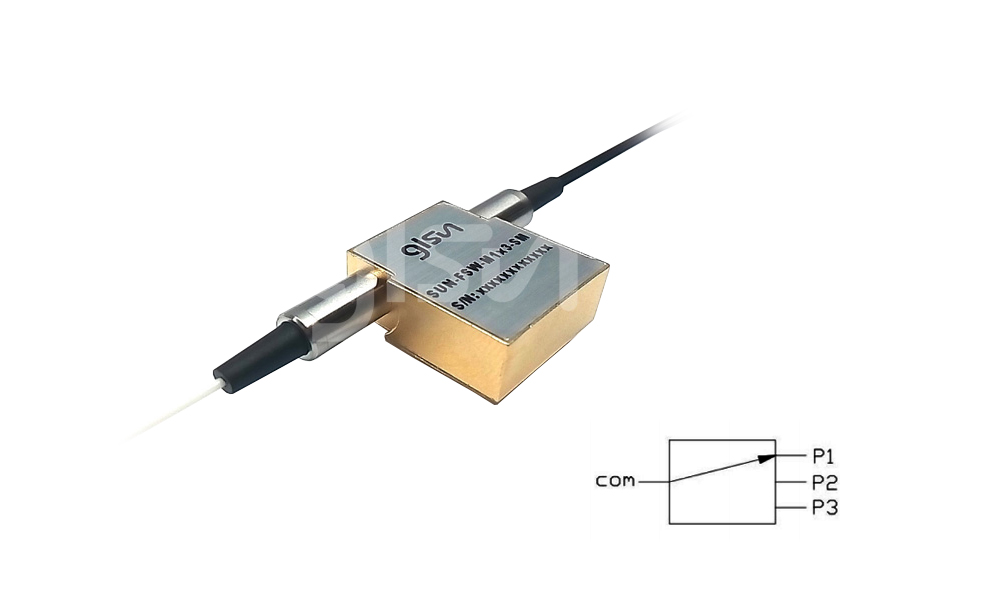

M1x3 / M1x4 Optical Switch

Switch Type:Mechanical

Package Type:Device

Fiber Configuration:M1x3, M1x4

Wavelength Range:850±40 / 1300±40; 1260 ~ 1650nm

Dimension:(L )20x(W)17.6x(H)8±0.2mm

Product Details

GLsun SUN-FSW-M1x3 / SUN-FSW-M1×4 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)21.0×(W)9.0×(H)12.0 ±0.2mm. Mini optical switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.




·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching




·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching



Specifications

Parameters

Unit

SUN-FSW-M1×3 or SUN-FSW-M1×4

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

≤ 1.0

Return Loss 1, 2

dB

MM ≥ 30

SM ≥ 50

Crosstalk 1

dB

MM ≥ 35

SM ≥ 55

PDL

dB

≤ 0.1

WDL

dB

≤ 0.25

Repeatability

dB

≤ ±0.05

Operating Voltage

V

3.0 or 5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤ 8

Optical Power

mW

≤ 500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L )20x(W)17.6x(H)8±0.2

Note:

1 Test at room temperature.

2 Excluding connectors.

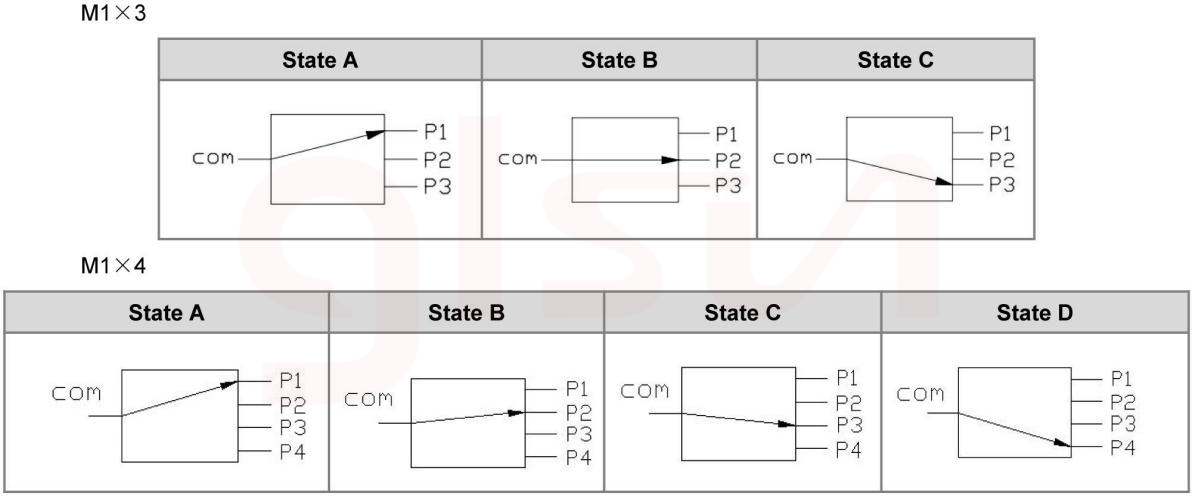

Optical Route

Ordering Information

SUN-FSW-A-B-C-D-E-F-G-H

A

B

C

D

E

F

G

H

Optical Switch Type

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include

connector)

Connector

M1x3

M1x4

SM: SM, 9/125

M5: MM, 50/125

M6:MM, 62.5/125

X: Others

3:3V

5:5V

L:Latching

N:Non-latching

850:850nm

1310:1310nm

1550:1550nm

1310/1550:

1310/1550nm

X:Others

25: 250um

90: 900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP:FC/PC

FA: FC/APC

SP:SC/PC

SA: SC/APC

LP:LC/PC

LA:LC/APC

X:Others
