In fiber-optic sensing systems, the performance of an optical switch directly determines the system's measurement accuracy, stability, and long-term reliability. Key performance metrics—such as insertion loss, isolation, return loss, switching speed, crosstalk, and power consumption—are crucial for ensuring the sensing system operates efficiently and maintains high signal integrity. Optimizing these parameters is therefore essential for building robust fiber sensing solutions.

Insertion Loss

Insertion loss refers to the optical power attenuation introduced by the optical switch and is typically measured in decibels (dB). In fiber sensing systems, insertion loss has a direct impact on the signal-to-noise ratio (SNR) and sensing sensitivity. Ideally, insertion loss should be kept below 1 dB to minimize signal degradation.

Mechanical optical switches generally offer lower insertion loss—often less than 1.5 dB—because they rely on physically moving fibers or optical components to redirect the light path. This makes them particularly suitable for sensing systems where signal attenuation must be minimized.

In contrast, non-mechanical switches such as electro-optic and thermo-optic types may have slightly higher insertion loss because they rely on refractive index changes, though advancements in materials and device design are gradually narrowing this gap.

Insertion loss control becomes especially important in long-distance fiber sensing systems. In distributed temperature sensing (DTS), for example, the fiber length may extend tens or even hundreds of kilometers. Excessive attenuation within the switch can cause the backscattered signal to drop below detectable levels, making effective monitoring impossible. Choosing low-loss optical switches is therefore a fundamental requirement for long-range sensing applications.

Isolation and Return Loss

Isolation describes the ability of an optical switch to prevent unwanted signal leakage between channels, especially when the switch is in the OFF state. High isolation—typically greater than 45 dB—helps minimize the influence of reflected or leaked signals on the measurement accuracy.

Return loss measures the ratio of reflected optical power relative to the incident power. Optical switches with high return loss—usually above 35 dB—help reduce the impact of back reflections on the light source, thereby preventing instability or potential damage.

Back reflections in distributed sensing systems often originate from connectors, splices, or optical interfaces. Optical switches with high isolation and return loss suppress these reflections by incorporating components such as polarizers, rotators, and analyzers. These mechanisms can reduce reflected power by over 35 dB, significantly enhancing system stability.

In vibration sensing applications, high isolation and return loss are also vital. They prevent noise from contaminating the sensing channels, enabling the system to reliably detect weak vibration signals and improving both sensitivity and positioning accuracy.

Switching Speed

Switching speed refers to the time required for the optical switch to respond to a control signal and stabilize the optical path. This parameter is typically expressed in milliseconds (ms) or nanoseconds (ns).

Most distributed fiber sensing applications only require millisecond-level switching performance. For example, in distributed temperature sensing, switching times around 3 ms are sufficient for cyclic multi-channel monitoring.

However, for applications requiring rapid response—such as detecting sudden vibration events—faster switching may be necessary. In these cases, electro-optic or MEMS optical switches are generally preferred due to their high-speed capabilities.

Switching speed also determines the system's monitoring frequency and real-time performance. Faster switching enables higher sampling rates, which improves responsiveness to dynamic events. Therefore, selecting the appropriate switch technology depends heavily on the sensing system's specific performance requirements.

Crosstalk and Power Consumption

Crosstalk refers to unwanted signal leakage into non-target channels. Low crosstalk improves channel independence and overall sensing accuracy, especially in multi-channel systems. High crosstalk can cause channel interference, leading to false readings or reduced measurement precision.

Power consumption varies widely across optical switch technologies—from milliwatt levels to tens of watts. Low-power switches are particularly important for remote or long-term monitoring scenarios, such as pipeline or perimeter sensing, where energy resources may be limited.

In practical engineering environments:

For high-precision monitoring (e.g., transformer temperature sensing), low crosstalk is essential to maintain channel accuracy.

For remote or unattended deployments, low power consumption extends the system's operational life and reduces maintenance requirements.

Balancing crosstalk and power consumption is therefore a crucial part of designing a stable and efficient fiber sensing system.

Selecting the right optical switch—and optimizing key performance parameters—is essential for building high-precision, high-stability fiber-optic sensing systems. As fiber sensing applications continue expanding into energy, infrastructure, security, and smart monitoring, optical switch performance will remain a fundamental design consideration.

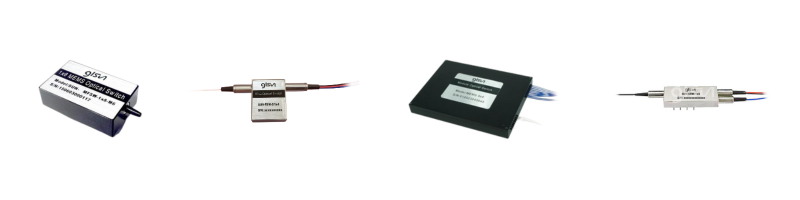

GLSUN, founded in 2001, is a technology-driven company specializing in the research, design, and manufacturing of passive optical components. Its product portfolio includes mechanical optical switches, MEMS optical switches, wavelength-division multiplexers, optical isolators, and optical circulators, serving applications across fiber sensing, communication networks, and optical testing.
