A Matrix Optical Switch is a device that interconnects optical fibers in a flexible way, allowing one input port to be connected to one or multiple output ports—or in more advanced cases, enabling full any-to-any connectivity across a large number of ports. Unlike simple optical splitters or wavelength-selective switches, a matrix switch operates entirely in the optical domain, eliminating the need for costly optical-electrical-optical conversion.

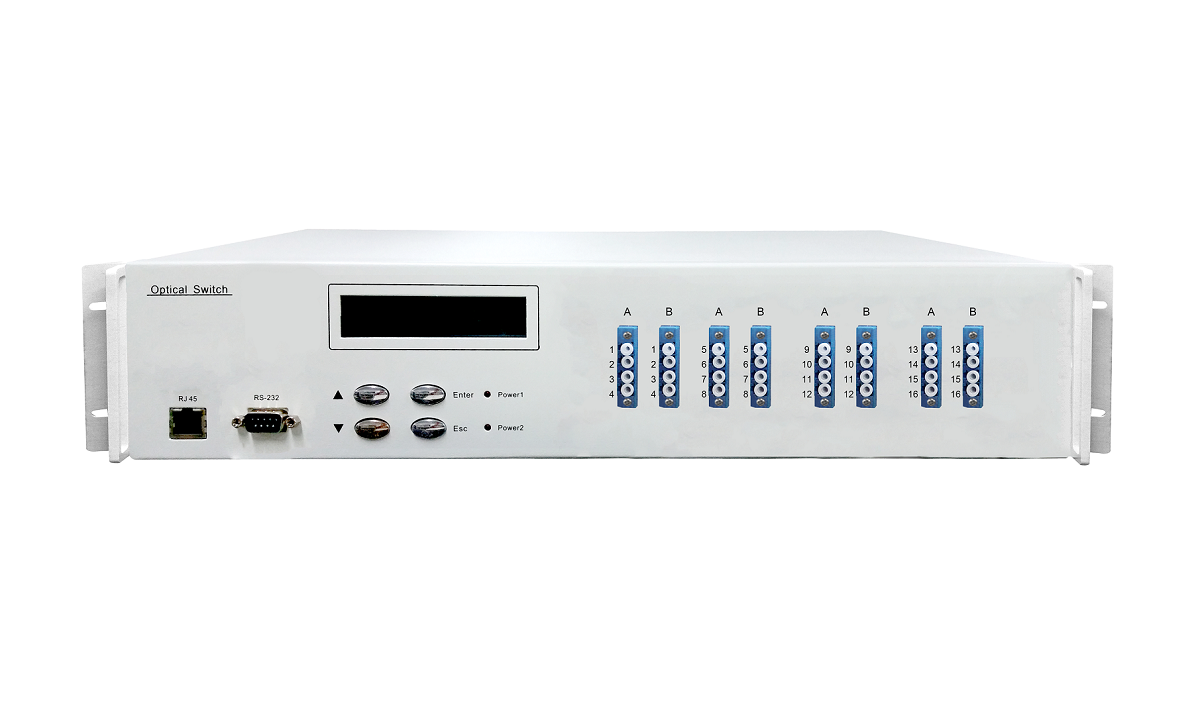

1. Entry-Level: N-1×1 Matrix Optical Switch

The N-1×1 Matrix Optical Switch represents the most fundamental building block in optical switching. At its core, it is essentially a set of parallel 1×1 optical switches that can be independently controlled, providing multiple isolated paths in a single compact device. These modules are often based on technologies such as mechanical, magneto-optical, or MEMS (Micro-Electro-Mechanical Systems) switching, depending on vendor design.

One of the key advantages of N-1×1 optical switches is their predictable performance. They typically feature low insertion loss (often less than 1 dB), fast switching times in the millisecond range, and exceptionally high durability, with lifetimes reaching over 10⁸ switching cycles. Because each channel operates independently, failure or maintenance on one path does not compromise the integrity of the others—an important reliability feature in mission-critical systems.
Their cost-effectiveness makes them attractive for small-scale or dedicated applications. Instead of investing in a large matrix fabric, engineers can deploy these compact units where only a handful of flexible connections are needed. This is particularly true in laboratory environments, where optical paths must frequently be reconfigured for experiments. Other common applications include link protection in enterprise networks, simple routing in monitoring systems, and educational or research labs where budget constraints are significant but flexibility is still required.

By combining multiple N-1×1 modules, operators can also scale up incrementally, creating customized mini-matrix solutions without investing in high-end infrastructure. This modular and scalable nature explains why N-1×1 optical switches remain a preferred choice for entry-level optical routing and protection scenarios.

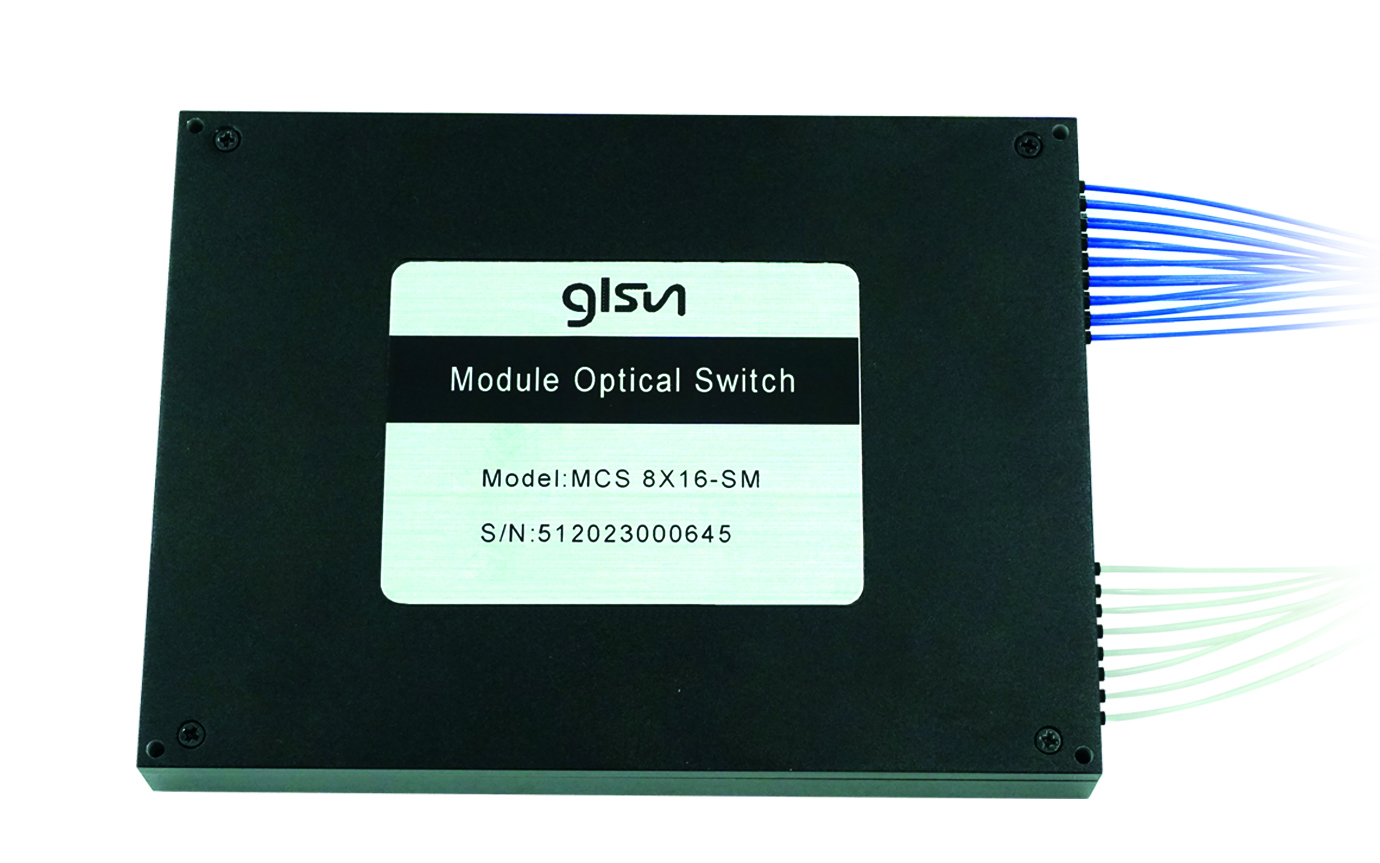

2. Mid-Tier Solution: MCS (Multicast) Matrix Optical Switch

When networks demand more complex connectivity but still need to balance cost and scalability, the Multicast (MCS) Matrix Optical Switch offers a compelling mid-tier solution. Unlike simple 1×1-based devices, the MCS switch combines planar lightwave circuit (PLC) splitters with MEMS-based switching elements to enable multicast and selective replication functions. A typical configuration is an 8×16 module, which allows eight inputs to be flexibly connected and distributed across sixteen outputs.

The shared-port architecture of MCS optical switches provides significant cost advantages. By leveraging passive splitters, the design reduces the number of active switching elements, lowering both capital expenditure (CAPEX) and power consumption compared to full matrix solutions. This makes the MCS an ideal choice for budget-constrained deployments where functionality is important but ultra-low insertion loss or large-scale scalability is not essential.

Performance-wise, MCS optical switches usually demonstrate insertion loss values in the range of 12–17 dB, depending on the number of splitter stages and optical paths. Loss uniformity across output channels is generally tight (within 1–1.5 dB), while polarization-dependent loss (PDL) and wavelength-dependent loss (WDL) are maintained at acceptable levels for metro and access applications. These characteristics are sufficient for most laboratory and metro-scale network scenarios, especially when paired with optical amplifiers such as EDFAs to compensate for splitter-induced power reductions.

The versatility of MCS optical switches is reflected in their applications. In laboratories, they eliminate the need for constant fiber reconnections, simplifying testing and reducing wear on connectors. In network environments, they are widely deployed in CDC-ROADM (Colorless, Directionless, Contentionless Reconfigurable Optical Add-Drop Multiplexer) nodes, where selective replication and flexible add/drop functions are critical. They are also suitable for pilot projects and field trials, allowing service providers to test new configurations without heavy upfront investment.

Despite the additional insertion loss inherent in their design, MCS Matrix Optical Switches strike the perfect balance between cost, functionality, and reliability, filling the gap between small-scale switches and high-end full matrix fabrics.

3. High-End Solution: Full Matrix Optical Switches

For large-scale optical networking environments such as hyperscale data centers, carrier backbone networks, and advanced research facilities, only full matrix optical switches provide the level of true any-to-any connectivity required. These devices are engineered to support non-blocking, simultaneous paths across dozens—or even hundreds—of input and output ports. Two key architectures dominate this segment: spliced modular matrices and 3D MEMS-based fabrics.

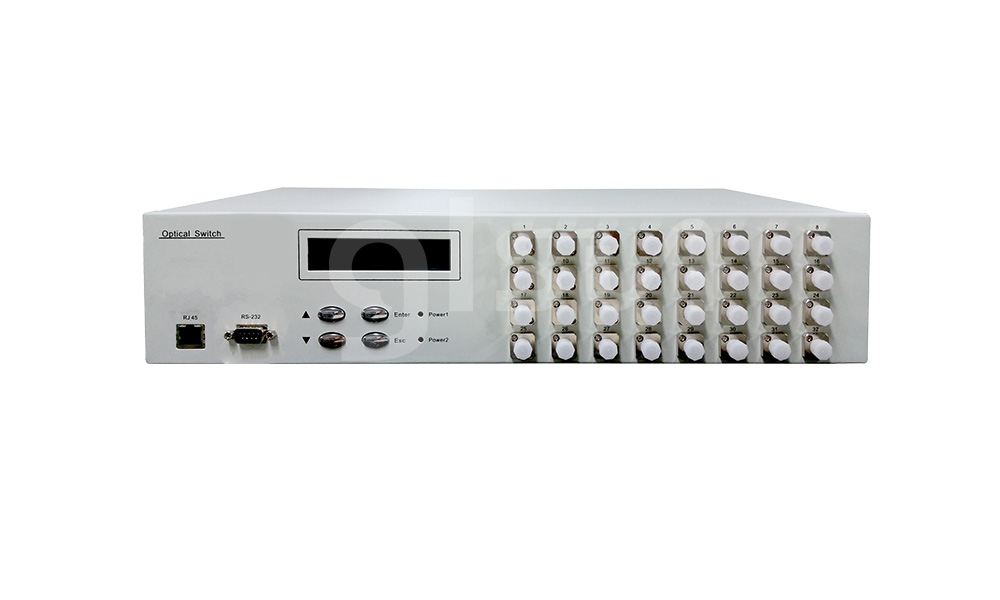

- Spliced Modular Type

The spliced or modular approach builds large matrices by interconnecting smaller switching modules such as 8×8 or 16×16 blocks. Using careful fiber splicing and patching, vendors can assemble non-blocking matrices up to 32×32 or more. The major advantage of this design is expandability: operators can deploy a modest switch footprint initially, then add modules as traffic demands grow. This incremental investment model aligns with real-world deployment strategies where traffic growth is unpredictable.
While modular solutions are cost-efficient, they introduce added optical complexity. Each splice or interconnect adds a small amount of insertion loss, and cable management becomes more challenging as the system scales. Despite these hurdles, spliced modular matrices are highly valued in regional interconnect networks and large-scale testbeds, where a flexible balance of capacity and cost is necessary.

- 3D MEMS Type

At the pinnacle of optical switching lies the 3D MEMS Matrix Optical Switch, capable of achieving port counts up to 128×128 or beyond. These devices use micro-mirror arrays to dynamically redirect light beams in three-dimensional space, providing true non-blocking any-to-any connectivity.

The benefits of 3D MEMS are substantial:

Low insertion loss relative to multicast-based systems, typically around 1–2 dB per path
High switching reliability, with cycle lifetimes exceeding 10⁹ operations
Fast switching times, generally under 20 ms, suitable for provisioning and protection switching
Compact form factors, enabling deployment in dense data center environments
Such optical switches are purpose-built for next-generation ultra-large networks, where agility and scalability are paramount. Data centers use them for rack-to-rack optical interconnection, reducing the need for multiple transceivers and patch panels. Carrier backbone networks rely on them for dynamic traffic grooming and automated restoration. Research facilities leverage them to interconnect large numbers of fibers in experimental setups without manual intervention.

Together, spliced modular matrices and 3D MEMS fabrics represent the cutting edge of optical switching technology. They provide the scalability and resilience required to handle the exponential growth in traffic driven by cloud services, AI workloads, and global connectivity demands.

Matrix Optical Switches are not one-size-fits-all. Entry-level N-1×1 switches provide affordable reliability, MCS modules offer multicast capability for labs and mid-tier networks, and 3D MEMS solutions unlock the potential of ultra-large-scale optical networks. By matching switch architecture to your operational needs, you can balance cost, performance, and scalability—ensuring your network remains future-ready.
