Fiber Cable Monitoring System
  • Fiber Cable Monitoring System
  • Fiber Cable Monitoring
  • Fiber Cable Monitoring System

Fiber Cable Monitoring System

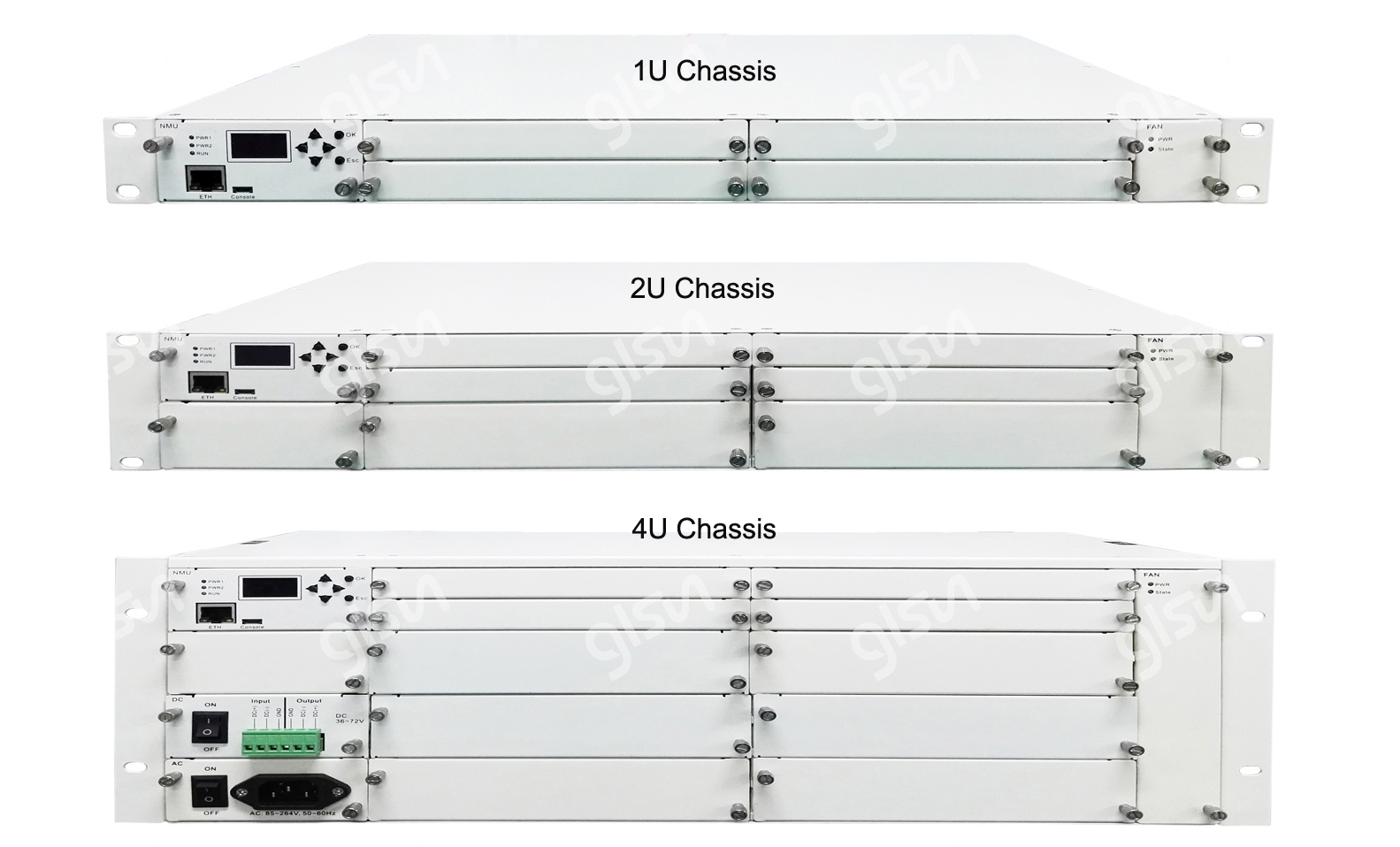

Chassis Size:1U, 2U, 4U

1U Dimension:482.6×300×44mm

2U Dimension:482.6×300×89mm

4U Dimension:482.6×300×178mm

Product Details

OTS3000-MSTP is a kind of optical communication integrated platform. GLSUN independently research, develop and design it. Its high density and high integration enable the system provide rich functions and flexible configurations. Otherwise, it provides LCD GUI user interface and rich network management functions.

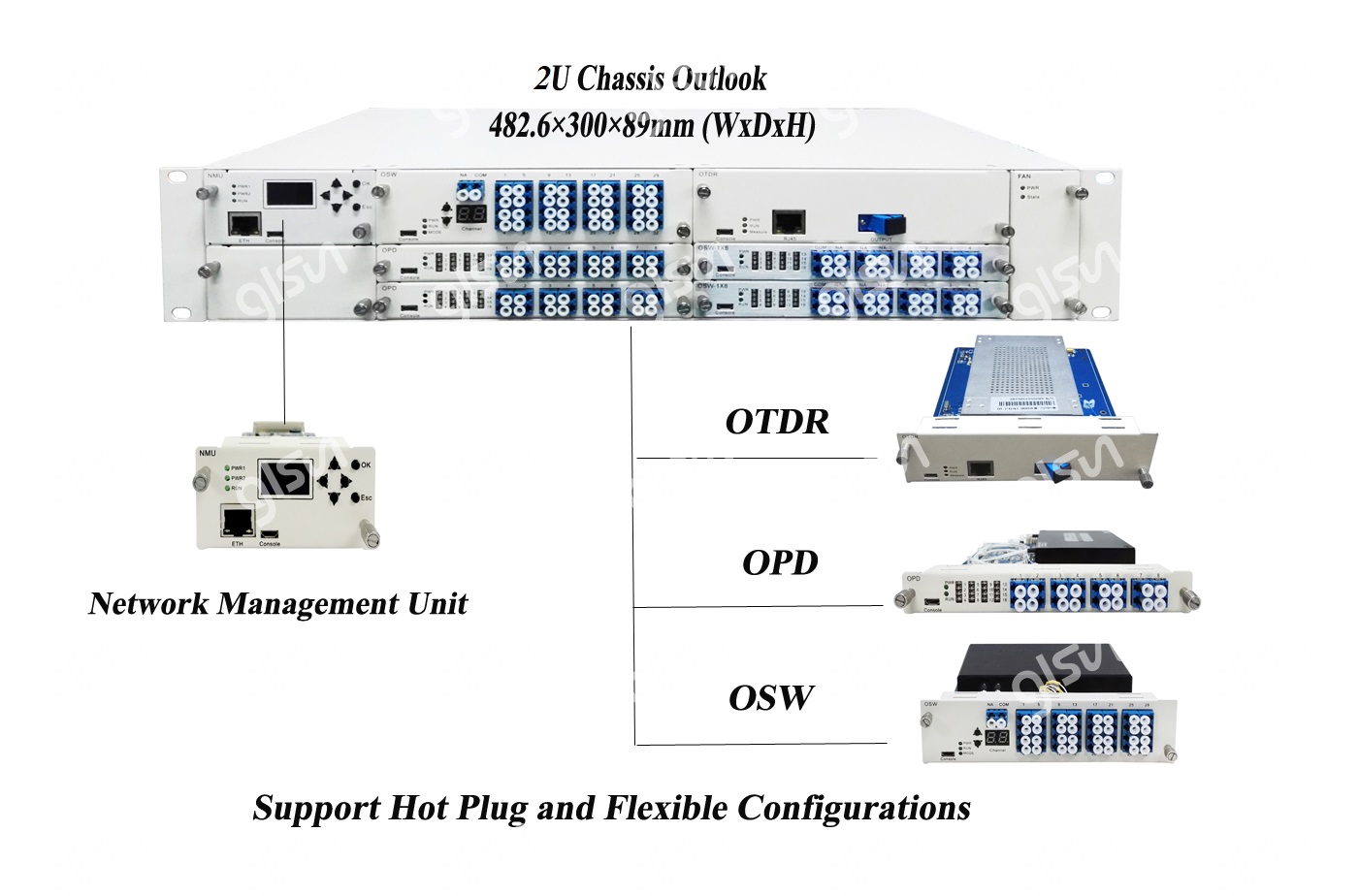

OTS3000 fiber monitoring system adopts the standard 19 inches chassis design, with the size of 1U, 2U ,4Uetc. The redundant power and pluggable design support dual AC, dual DC ,and AC&DC power supply mode. This equipment provides 20 function card slots maximum, two kinds of NMU and 50W,100W,200W power card, and supports DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA, and TMUX function card, thus it is widely used in optical transmission , optical protection, cable monitoring and data safety field.



GLSUN fiber optic monitoring system is combined with OTDR, optical switch, and upper-level network management software, form a systematic and intelligent system integrating functions of testing, analysis, alarm, positioning, information management and worksheet.




◆Modularized design of the function card, flexible networking of CWDM, DWDM transmission, protection and monitoring.

◆Configuration,performance, alarm and safety management etc.

◆Pluggable 1+1 redundant power,provide stable power supply for the equipment.

◆4U equipment provides 19 function card slots maximum, to enrich the function for network.

◆Web based GUI user interface management, easy for engineering installation.

◆Support SNMP, WEB, TELNET and SSH network protocol remote management.


◆CWDM, DWDM Optical Transmission Network

◆Optical Protection Network

◆Cable Monitoring Network




Specifications

Parameters

Unit

 OTS3000-1U

OTS3000-2U

OTS3000-4U

Chassis Slot



2 power card slot;

1 NMU card slot;

1 fan card slot;

4 function card slot;

2 power card slot;

1 NMU card slot;

1 fan card slot;

8 function card slot;

2 power card slot;

1 NMU card slot;

1 fan card slot;

16 function card slot;

Chassis Size(WxDxH)

mm

482.6×300×44

482.6×300×89

482.6×300×178

Maximal Device Power

W

50 or 100

100 or 200

200 or 300

Device Weight

Kg

6

8

12

Power Supply



Redundant power: DC 36V~72V or AC 100V~240V

Fan Type



Plug-in module

Operating Temperature

-5 ~ +55

Storage Temperature

- 20 ~ +70

Relative Humidity



5% ~ 95% (non-condensing)

Ordering Information: OTS3000-A-B-C-D

AChassis Type

BPower Supply Mode

CDevice Power Max

D: NMU Type

1U:482.6×300×44 mm

2U:482.6×300×89 mm

4U:482.6×300×178 mm

X:   Others

00: Without power and fan.

DC: DC power

AC: AC power

AA: DualAC power

DD: Dual DC power

AD: AC & DC power

X: Others

00:   Without power

50: 50W max

100:100W max

200:200W max

300:300W max

X:  Others

00: Without NMU

NMUA:Normal NMU

NMUF:Support SFP interface

X :     Others
