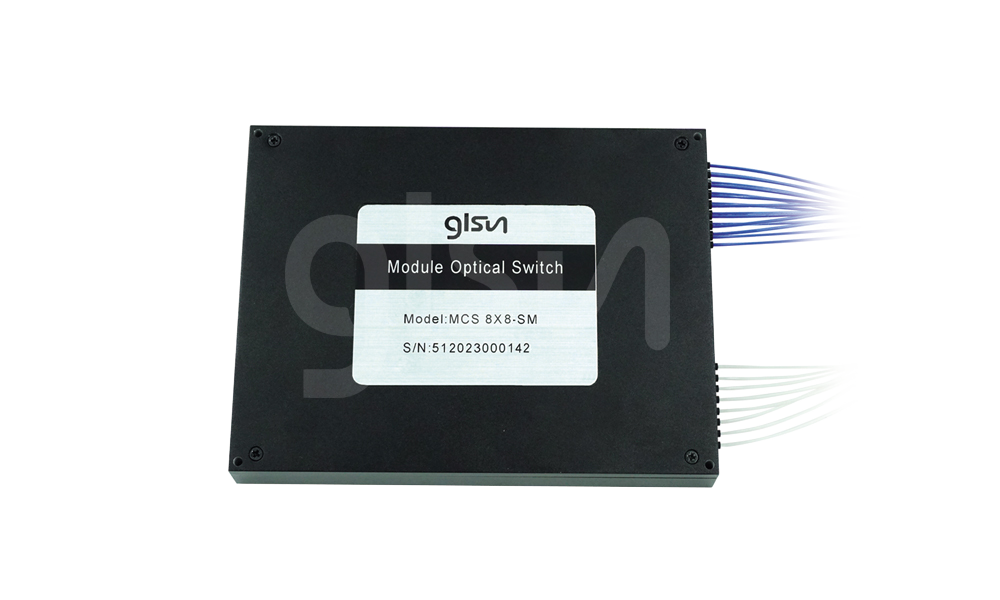

Multicast Switch MCS 8x8 Module
  • Multicast Switch MCS 8x8 Module
  • Multicast Switch MCS 8x8 Module

Multicast Switch MCS 8x8 Module

Switch Type:MEMS

Package Type:Module

Fiber Configuration:MCS

Wavelength Range:1527nm; 1568nm

Dimension:160(L) x120(W) x15(H) ±0.2mm

Product Details

Multicast Switch (MCS) series are designed for next generation of CDC-ROADM system based on PLC splitter and MEMS optical switch technology. The product is an integrated module containing 8x8 type MCS and electronic control unit inside. The module could implement any optical input can be routed to any of the out ports function. This 8x8 multicast switch could be used at key locations in the CDC-ROADM optical network.


ADD & DROP in one module

Hitless switching

Low insert loss

Low power dissipation


 DWDM Networks

 ROADM Systems



Specifications

Parameters

Units

SUN-MCS-8X16

Min.

Typ.

Max.

Operation Wavelength Range

nm

1527



1568

Test Wavelength

nm



1550



Insertion Loss 1,2

dB





13

Insertion Loss Uniformity

dB





1.5

Polarization Dependent Loss

dB





0.5

Wavelength Dependent Loss

dB





0.5

Polarization Mode Dispersion

ps





0.5

Block State Insertion Loss

dB

40





Return Loss

dB

45





Port Isolation

dB

40





Port Switch Time

ms





25

Repeatability

dB



±0.05



Maximum Optical Input Power

dBm





23

Durability

Cycles

109





Power Consumption

W





10

Operating Temperature

-5~+60

Storage Temperature

-40~+85

Dimension

mm

160(L) x120(W) x15(H) ±0.2

Note:

1  Within operating temperature and SOP.

2  Excluding connectors.

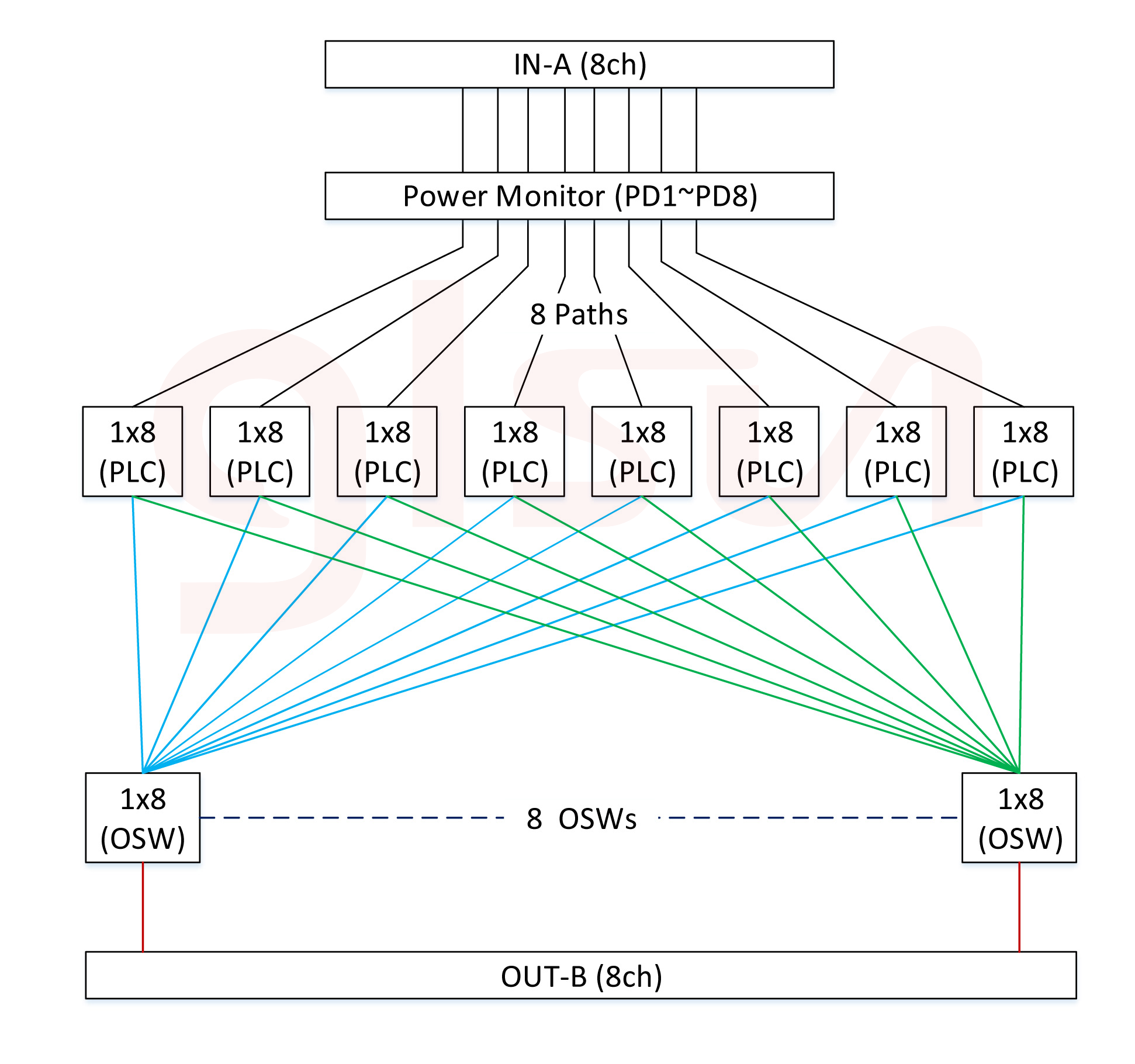

Optical Route

Ordering Information

SUN-MCS-8x8-A-B-C-D-E

A

B

C

D

E

Fiber Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM:SM,9/125

X: Others

1550:1550nm

X:Others

90:900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Others
